All ProductsTurck

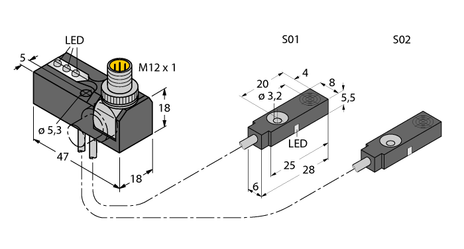

Turck BI2-Q5.5-0.05-BDS-2AP6X3-H1141/S34

SKU: CS3788790MPN: BI2-Q5.5-0.05-BDS-2AP6X3-H1141/S34Alternate Part #: 1613008UPC/EAN: 4047101078565

1613008 - FERRITE, CLAMP, DC, CON. M12

Turck BI2-Q5.5-0.05-BDS-2AP6X3-H1141/S34
$273.75
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

Monitoring Kit for Power Clamps

  • BDS power block with two connected sensors and LEDs
  • Robust rotatable connector 0°, 45° and 90°, for optimal cable routing
  • Plastic, Trogamid
  • Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT
  • 2 x NO contact, PNP output
  • DC 4-wire, 10…30 VDC

Attributes

Ambient Temperature -25…+70 °C
Customs Tariff Number 85365019900.0000
Design Monitoring kit for power clamps
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Metal, Trogamit
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 2 mm
Special Feature Resistant to magnetic fields
Switching Frequency 0.030 kHz

Specifications

SKUCS3788790
MPNBI2-Q5.5-0.05-BDS-2AP6X3-H1141/S34
Alternate Part #1613008
UPC/EAN4047101078565
