Turck BI10-Q14-LIU-V1141
SKU: CS4209295MPN: BI10-Q14-LIU-V1141Alternate Part #: 1534603UPC/EAN: 4047101071740
1534603 - FERRITE, RECT., ANALOG, CON. M
$300.32
UnitAvailable on backorder
Product Details
Inductive Sensor
With Analog Output

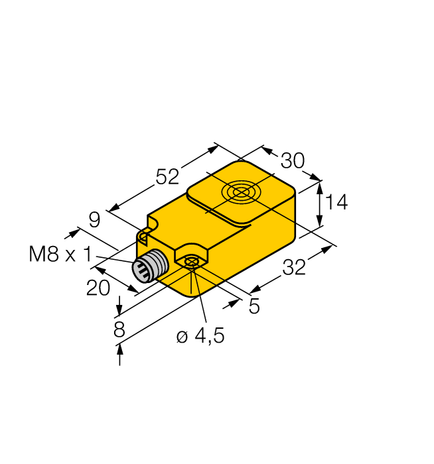

- Rectangular, height 14 mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- 4‐wire, 15…30 VDC
- Analog output
- 0…10 V and 0…20 mA
- M8 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | 52 x 30 x 14 mm, Q14 |
| Current Output | 0…20 mA |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270802 -/- Indcutive distance sensor |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Measuring Range | 3…8 mm |
| Mounting | Flush |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Protection Class | IP67 |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS4209295 |
|---|---|
| MPN | BI10-Q14-LIU-V1141 |
| Alternate Part # | 1534603 |
| UPC/EAN | 4047101071740 |
