Turck BI20R-Q14-LU-H1141

SKU: CS3684123MPN: BI20R-Q14-LU-H1141Alternate Part #: 1535548UPC/EAN: 4047101072297

1535548 - FERRITE, RING, ANALOG, CON. M1

Turck BI20R-Q14-LU-H1141
$513.75
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Analog Output

  • Rectangular, height 14 mm
  • Plastic, PBT‐GF30‐V0
  • Sensitivity adjusted via potentiometer
  • Thickness measurement (e.g. screws, rivets, rods)
  • Path measurement with conical actuator: Measuring range freely adjustable via cone length
  • 3‐wire, 15…30 VDC
  • Analog output
  • 0…10 V
  • M12 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C

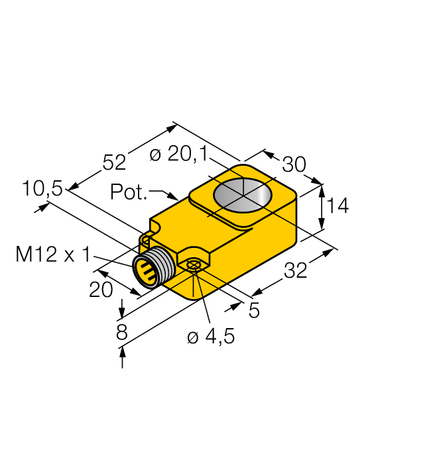

Construction Size 62.5 x 30 x 14 mm, Q14
Customs Tariff Number 85365019900.0000
Design Ring sensor
Ecl Ss Code V5 1 4 27270802 -/- Indcutive distance sensor
Electrical Connection Connector, M12 × 1
Housing Material Plastic, PBT-GF30-V0
Inside Ring Diameter D 20.1 mm
Operating Voltage 15…30 VDC
Output Function Analog output
Protection Class IP67
Voltage Output 0…10 V

Specifications

SKUCS3684123
MPNBI20R-Q14-LU-H1141
Alternate Part #1535548
UPC/EAN4047101072297
