Dwyer P3-44
SKU: CS4120135MPN: P3-44Alternate Part #: 124254-13
P3-44 FLW SW PP DICONN 1.5GPM
$174.22
UnitAvailable on backorder
Product Details

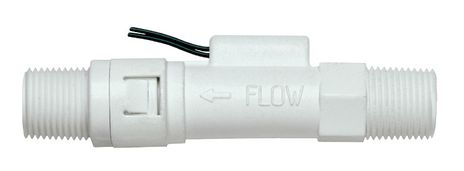

Polypropylene flow switch, actuation set point 1.5 GPM (5.68 LPM), Q disconnect.
Attributes
| Accuracy | 20% of set point. |
| Agency Approval | CE. |
| Commodity Code | R5DC |
| Electrical Connection | 24” (60.96 cm) polymeric wire leads, 22 AWG. |
| Electrical Rating | .08 A @ 120 VAC. |
| Mounting Orientation | Any position. Set points shown are based on vertical, inlet down position. |
| Pressure Limit | 125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C). |
| Process Connection | ⅜” male NPT or ¼” quick disconnect. |
| Required Filtration | 100 microns or better. |
| Service | Compatible liquids. |
| Switch Type | SPST, N.O. |
| Wetted Material | Housing: Polypropylene; Piston: PPS composite; Spring: 316SS; O-ring: Fluorocarbon. |
Specifications
| SKU | CS4120135 |
|---|---|
| MPN | P3-44 |
| Alternate Part # | 124254-13 |
