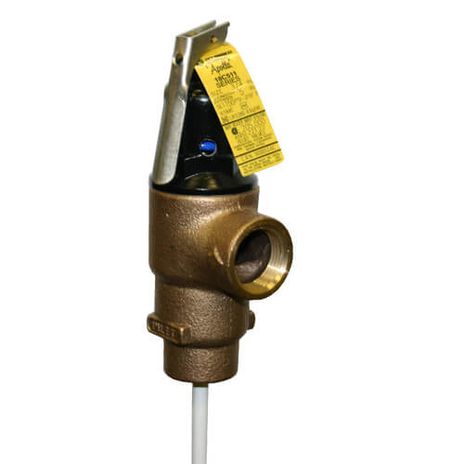

Apollo Valves 18C5213150

1” TPC 2,155,000 BTU Capacity T \& P Relief Valve w/ 3” Element (150 PSI)

The Apollo® TPC bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

Features:

• ASME Section IV Certified Capacity
• ¾” through 2” NPT Connections
• CSA Listed and Certified to ANSI Z21.22
• 125 and 150 psig Set Pressures @ 210°F max
• Coated Element Protects Against Corrosion
• SS Elements (1-½” and 2”)

Materials:

• Body: ASTM B584 Bronze
• Seat Stem: ASTM B16, Brass
• Seat disc: Silicone
• Element Tube Coating: Nylon
• Element Spring: Type 304 SST
• Element Pin: Type 302 SST
