Rheem SP10868LH
SKU: CS4071097MPN: SP10868LH

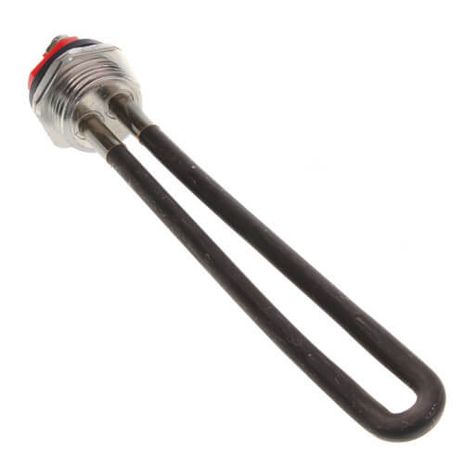

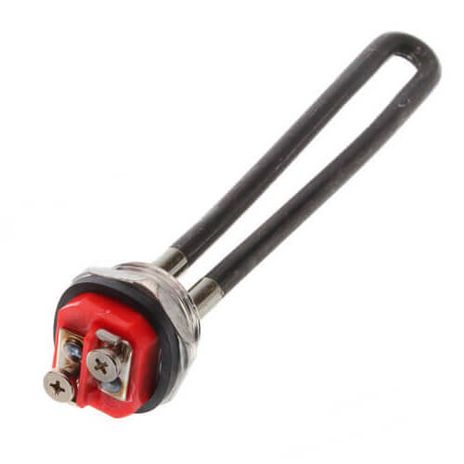

1” 1440W Stainless Steel Resistored Screw-in Element LWD (120V)
$27.81
Unit3 Units Available at Factory - Ships Same/Next Business Day
Product Details
1” 1440W Stainless Steel Resistored Screw-in Element LWD (120V)
- Watt Density Classification: LWD
- Input Voltage (V): 120
- Wattage at 120V (W): 1440
- Watt Density at 120V (W/sq. in. ): 97
- Cold Resistance (ohms): 10.00
- Outer Sheath Material: Stainless Steel (Incoloy)
- Resistored: Yes
- Configuration: Straight
- Element Diameter (in.): .316
- Element Length - Flange to Tip (in.): 7.78
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-½
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-½
Specifications
| SKU | CS4071097 |
|---|---|
| MPN | SP10868LH |
