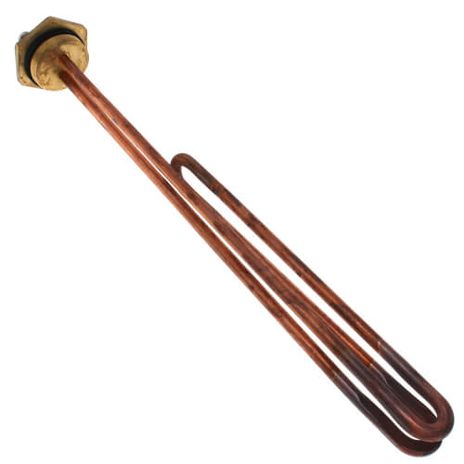

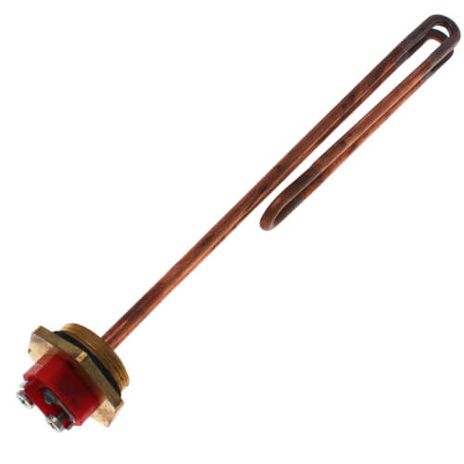

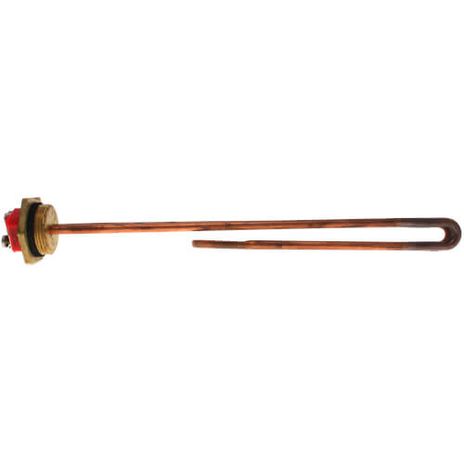

Rheem SP610740

5500W CO UN Element

5500W CO UN Element

• Watt Density Classification: HWD
• Input Voltage (V): 240
• Wattage at 240V (W): 5500
• Watt Density at 240V (W/sq. in. ): 163
• Cold Resistance (ohms): 10.6
• Outer Sheath Material: Copper
• Resistored: No
• Configuration: Foldback
• Element Diameter (in.): .260
• Element Length - Flange to Tip (in.): 12.68
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter (in.): 1-½
• Nominal Thread Size - (in.): 1-½
• Threads per Inch: 12
• Thread Type Series Designation: UNF
• Hex Head Size - Across Flats (in.): 1-⅞
