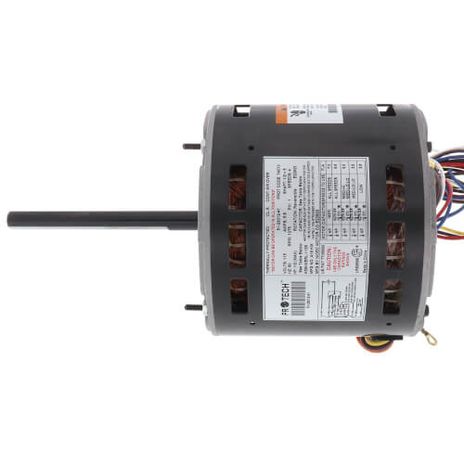

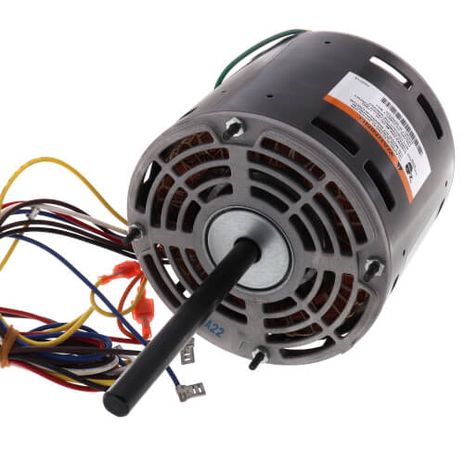

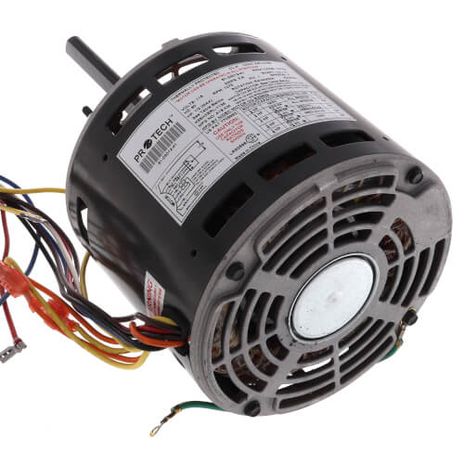

Rheem 51-23012-41

⅙-½ HP 1075 RPM Motor (120V)

⅙-½ HP 1075 RPM Motor (120V)

Specifications:

• HP: ⅙ - ½
• No. of Speeds: 4
• High Speed (RPM): 1075
• Input Voltage (V): 120
• No. of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): Reversible
• Run Capacitor (uF/V): 5/370, 7.5/370, or 10/370
• FLA at 120V (A): 7.30
• Shaft Diameter (in.): ½
• Motor Body Diameter (in.): 5-⅝
• Keyed/Flat Shaft Length (in.): 4
• Overall Shaft Length (in.): 5
• Motor Body Length (in.): 4-11/16
• Overall Motor Length (in.): 9-11/16
• Mounting: Shell-band
• Mounting: Thru-bolt
• Mounting: Shell-screw
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Blower
• Drive Type: Direct Drive
