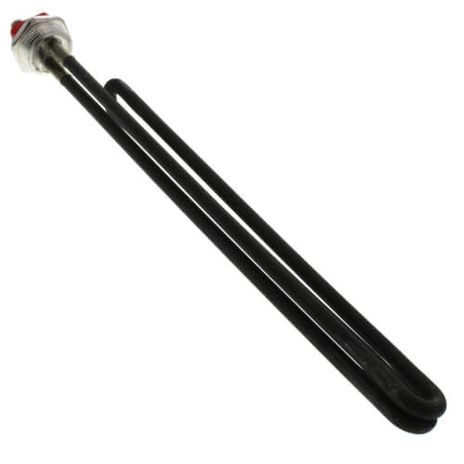

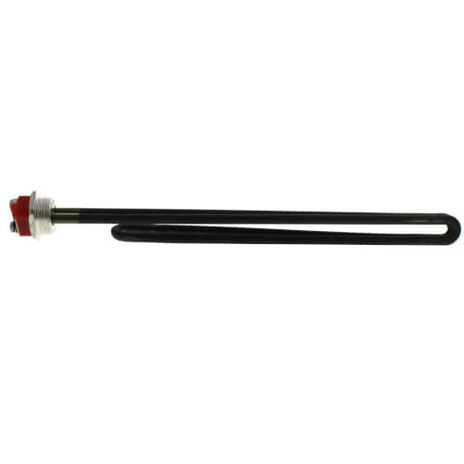

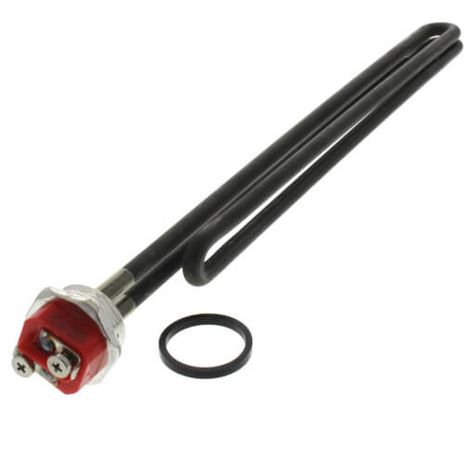

Rheem SP10869PH

1” 5500W Stainless Steel Resistored Screw-in Element MWD (240V)

1” 5500W Stainless Steel Resistored Screw-in Element MWD (240V)

• Watt Density Classification: MWD
• Input Voltage (V): 208
• Input Voltage (V): 240
• Wattage at 208V (W): 4130
• Watt Density at 208V (W/sq. in.): 85
• Wattage at 240V (W): 5500
• Watt Density at 240V (W/sq. in. ): 113
• Cold Resistance (ohms): 10.50
• Outer Sheath Material: Stainless Steel (Incoloy)
• Resistored: Yes
• Configuration: Foldback
• Element Diameter (in.): .316
• Element Length - Flange to Tip (in.): 13.47
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter (in.): 1-9/32
• Nominal Thread Size - (in.): 1
• Threads per Inch: 11-½
• Thread Type Series Designation: NPSM
• Hex Head Size - Across Flats (in.): 1-½
