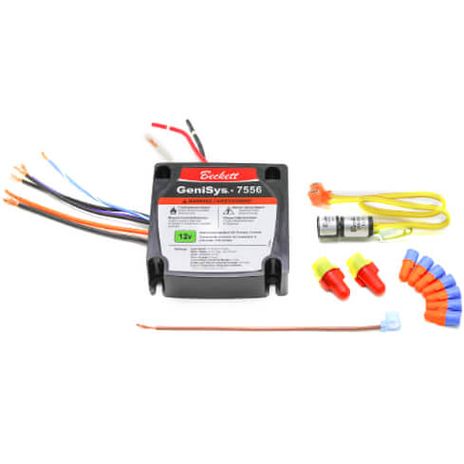

Beckett 7556P158MU

12VDC OIL CTRL POTTED

Epoxy Potted Oil Control (12V)

Product Description

The Beckett GeniSys 12 V Advanced Burner Control is a 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys™ 12 V is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.

Product Features

• Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
• Valve-on delay / motor-off delay (Field programmable with Beckett’s Contractor Tool)
• Epoxy potted for moisture resistance
• Welded relay protection with redundant motor relays
• High ambient temperature rating
• Alarm output enables visual or audio indication of flame failure and lock out condition
• Interrupted ignition
• Relight function
• Fused protection
• 15 second lockout time
• Communication port
