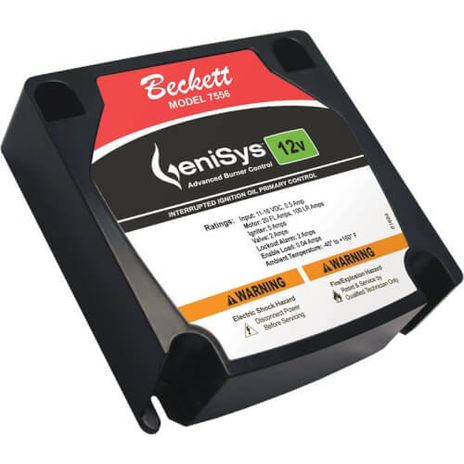

Beckett 7556P152MU

12VDC OIL CTRL POTTED

The Beckett GeniSys™ 12V Advanced Burner Control is a 12 Vdc primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 12V is used with a suitable cad cell fl ame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15-second lockout time.

Features \& Benefits:

• *New Feature* Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
• Valve-on delay / motor-off delay (Field programmable with Beckett’s Contractor Tool)
• Epoxy potted for moisture resistance
• Welded relay protection with redundant motor relays
• High ambient temperature rating
• Alarm output enables visual or audio indication of flame failure and lock out condition
• Interrupted ignition
• Relight function
• Fused protection
• 15 second lockout time
• Communication port

Inputs

• Voltage: 12 VDC nominal (11 to 16 VDC)
• Current: 160 mA nominal (500 mA max at 16 VDC)
• Enable Load: 40mA at 12 VDC Outputs

  + Motor: 12 VDC, 20 full load amps (FLA), 100 locked rotor amps (LRA) + Igniter: 12 VDC, 5 A + Solenoid Valve: 12 VDC, 2 A + Lockout Alarm: 12 VDC, 2 A

  Programed Delays (Changeable with Beckett Contractor Tool)

    - Valve On Delay: 15 seconds
    - Motor Off Delay: 2 minutes
