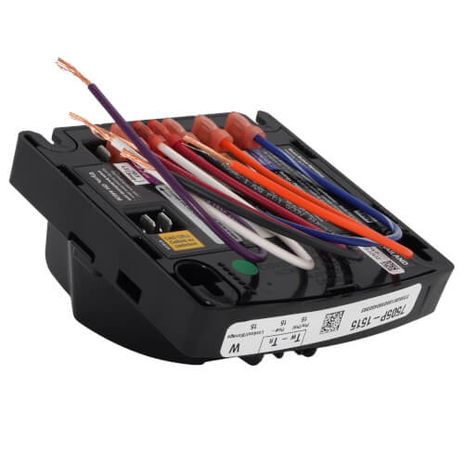

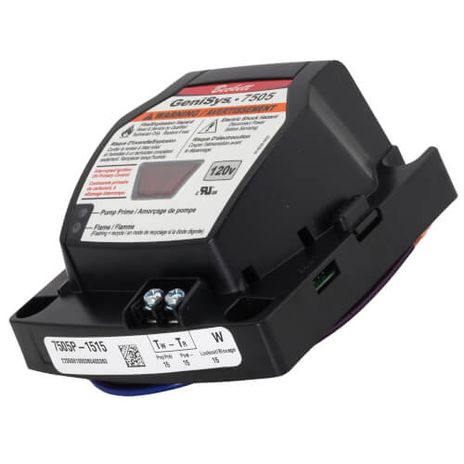

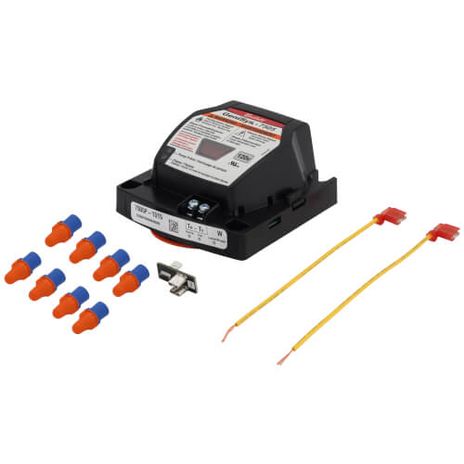

Beckett 7505P1515U

PRIMARY BECKETT 120V

**7505P Advanced Burner Control is the Beckett direct replacement for R7184B controls on Beckett burners. This version has 15 seconds Pre-purge and 15 seconds post-purge. Other versions available see Models and Cross Reference Guide in Manuals section.

The 7505P can be programed with pre-purge and post-purge and cycle history read using the GeniSys Contractor tool.**

The Beckett GeniSys™ Advanced Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.

• Water Resistant
• Thermostat and boiler control compatible
• Three status lights for system monitoring and diagnostics
• Welded relay protection with redundant motor relays
• Limited reset and limited recycle
• Technician Pump Prime mode
• 5-Year Warranty
• 7505A0000 replaces Honeywell R8184G
• Two communication ports for adding alarm contacts and programming tool.
• Lockout time (TFI) – 15 seconds
• Pre-purge – 15 seconds
• Post-purge – 15 seconds
• Customizable pre-time and post-time using Contractor Tool 52082U
