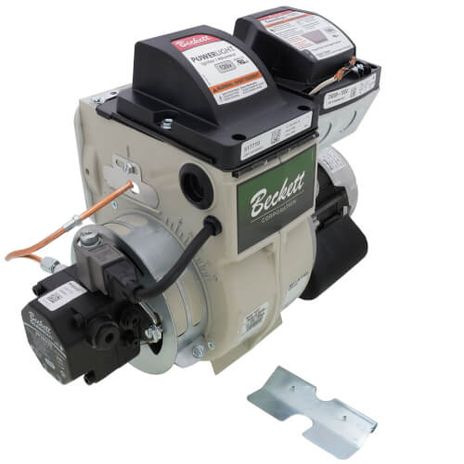

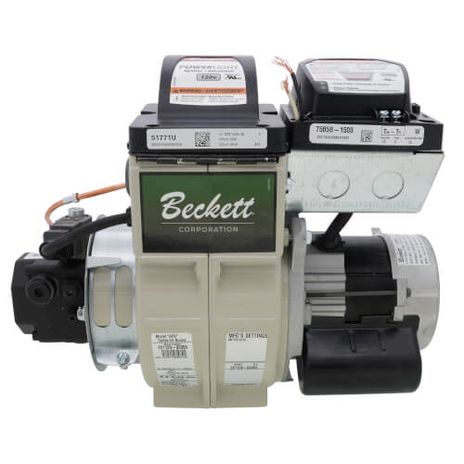

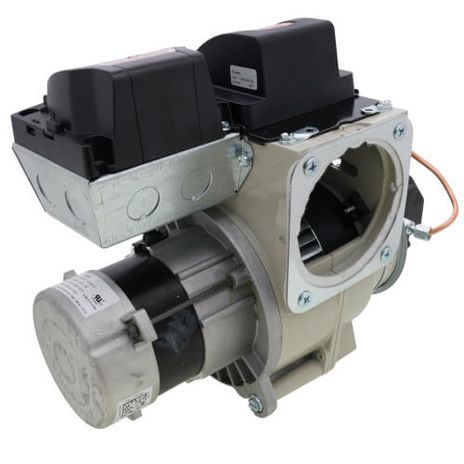

Beckett B2007

AFG Series Flame Retention Residential Oil Burner

Note: Air Tube Assembly and Nozzles must be purchased separately

**Note: This product is an AFG Chassis w/ GeniSys Burner control, PSC Motor, Beckett Ignitor, and Single Stage Beckett CleanCut Pump.

Air Tubes (different lengths), Mounting Flanges, End Cones (Firing Rates),and Oil Nozzles are sold separately.

Please check the Manuals section below to view the Air Tube Selection Chart.**

Beckett AFG burners utilize technically advanced components to meet increased demand for improved burner performance and reliability in modern, high-efficiency appliances. These performance-enhancing features will help you meet today’s toughest heating system challenges.

Specifications

• Capacity: 0.40 - 3.00 GPH - 56,000 - 420,000 btu/hr input
• Fuels: No.1 or No.2 heating oil (ASTM D396) only
• Fuel Unit: Single-stage Beckett CleanCut

Electrical Characteristics

• Power Supply: 120V AC, 60 Hz, single phase
• Primary Control: GeniSys 7505B1500 Pre-purge, interrupted ignition
• Motor: 1/7 HP, PSC, NEMA 48M frame
• Ignition: Continuous duty solid-state igniter
• Operating Load: 5.8 Amps Max.

Dimensions

• Height: 11-½”
• Width: 12-⅞”
• Depth: 6-9/16”
