Belimo G332B-M
SKU: CS4062891MPN: G332B-M

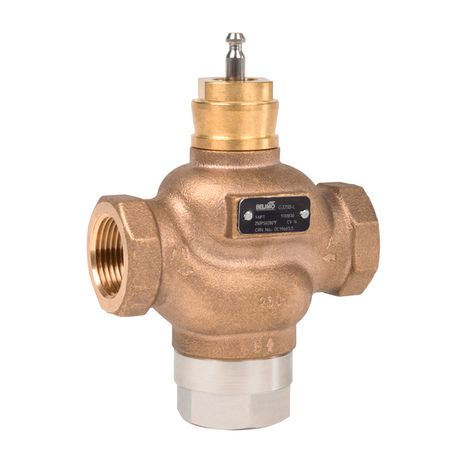

Globe Valve (GV), 1 ¼”, 3-way, ANSI Class 250, Cv 20
Product Details
Globe Valve (GV), 1 ¼”, 3-way, ANSI Class 250, Cv 20
Attributes
| Valve Size | 1.25” [32] |
| Cv | 20.0 |
| Flow Pattern | 3-way Mixing/Diverting |
| Valve Trim | Bronze |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | stem up - open B – AB |
| Pipe Connection | NPT female ends |
| Ansi Class | 250 |
| Rangeability Sv | A-port 100:1, B-port 50:1 |
| Fluid Temp Range (Water) | 20…280°F [-7…138°C] |
| Cv Range [Gpm] | 17…47 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 15…40 m³/h |
| Flow Characteristic | modified equal percentage, linear B – AB |
| Servicing | repack kits available |
| Valve Body | Bronze |
| Valve Plug | brass |
| Stem | stainless steel |
| Seat | Bronze |
| Stem Seal | EPDM O-ring |
| Body Pressure Rating | ANSI Class 250, up to 400 psi below 150°F |
Specifications
| SKU | CS4062891 |
|---|---|
| MPN | G332B-M |
