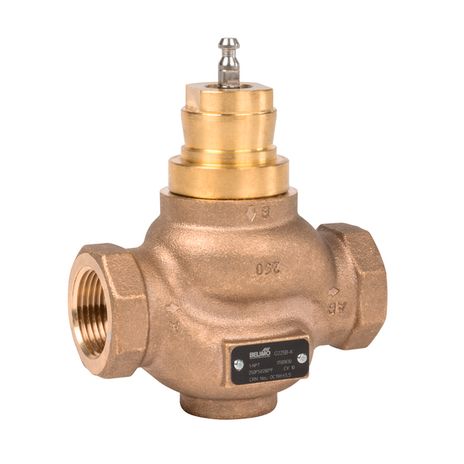

Belimo G225S-L
SKU: CS4062885MPN: G225S-L
Globe Valve (GV), 1”, 2-way, ANSI Class 250, Cv 14
Product Details
Globe Valve (GV), 1”, 2-way, ANSI Class 250, Cv 14
Attributes
| Valve Size | 1” [25] |
| Cv | 14.0 |
| Flow Pattern | 2-way |
| Valve Trim | Stainless steel |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol, steam |
| Controllable Flow Range | stem up - open A – AB |
| Pipe Connection | NPT female ends |
| Ansi Class | 250 |
| Maximum Inlet Pressure (Steam) | 100 psi [690 kPa] |
| Max Differential Pressure (Steam) | 50 psi [345 kPa] |
| Rangeability Sv | 100:1 |
| Fluid Temp Range (Water) | 20…338°F [-7…170°C] |
| Cv Range [Gpm] | 7.6…16 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 6.6…14 m³/h |
| Flow Characteristic | modified equal percentage |
| Servicing | repack kits available |
| Valve Body | Bronze |
| Valve Plug | Stainless steel AISI 316 |
| Stem | 316 stainless steel |
| Seat | Stainless steel AISI 316 |
| Stem Seal | EPDM O-ring |
| Body Pressure Rating | ANSI Class 250, up to 400 psi below 150°F |
| Fluid Temp Range (Steam) | 32…338°F [0…170°C] |
| Maximum Differential Pressure (Water) | 50 psi [345 kPa] |
Specifications
| SKU | CS4062885 |
|---|---|
| MPN | G225S-L |
