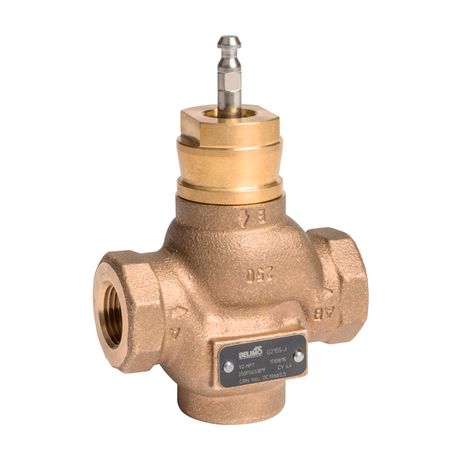

Belimo G220S-K
SKU: CS4062879MPN: G220S-K
Globe Valve (GV), ¾”, 2-way, ANSI Class 250, Cv 7.5
Product Details
Globe Valve (GV), ¾”, 2-way, ANSI Class 250, Cv 7.5
Attributes
| Valve Size | 0.75” [20] |
| Cv | 7.5 |
| Flow Pattern | 2-way |
| Valve Trim | Stainless steel |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol, steam |
| Controllable Flow Range | stem up - open A – AB |
| Pipe Connection | NPT female ends |
| Ansi Class | 250 |
| Maximum Inlet Pressure (Steam) | 100 psi [690 kPa] |
| Max Differential Pressure (Steam) | 50 psi [345 kPa] |
| Rangeability Sv | 100:1 |
| Fluid Temp Range (Water) | 20…338°F [-7…170°C] |
| Cv Range [Gpm] | 7.6…16 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 6.6…14 m³/h |
| Flow Characteristic | modified equal percentage |
| Servicing | repack kits available |
| Valve Body | Bronze |
| Valve Plug | Stainless steel AISI 316 |
| Stem | 316 stainless steel |
| Seat | Stainless steel AISI 316 |
| Stem Seal | EPDM O-ring |
| Body Pressure Rating | ANSI Class 250, up to 400 psi below 150°F |
| Fluid Temp Range (Steam) | 32…338°F [0…170°C] |
| Maximum Differential Pressure (Water) | 50 psi [345 kPa] |
Specifications
| SKU | CS4062879 |
|---|---|
| MPN | G220S-K |
You may also like
Belimo G250S-N
$1,200.77Unit
Belimo G215S-J
$437.67Unit
Belimo G225S-L
$686.40Unit
Belimo G240S-N
$978.03Unit

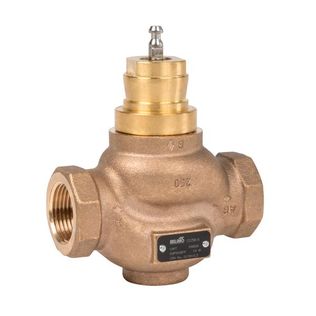

Belimo G232S-M
