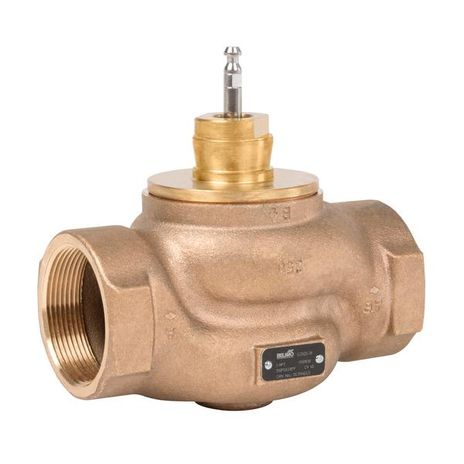

Belimo G240S-N
SKU: CS3658585MPN: G240S-N
Globe Valve (GV), 1 ½”, 2-way, ANSI Class 250, Cv 28
$978.03
Unit2 Units Available at Factory - Ships Same/Next Business Day
Documents
Product Details
Globe Valve (GV), 1 ½”, 2-way, ANSI Class 250, Cv 28
Attributes
| Valve Size | 1.5” [40] |
| Cv | 28.0 |
| Flow Pattern | 2-way |
| Valve Trim | Stainless steel |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol, steam |
| Controllable Flow Range | stem up - open A – AB |
| Pipe Connection | NPT female ends |
| Ansi Class | 250 |
| Maximum Inlet Pressure (Steam) | 100 psi [690 kPa] |
| Max Differential Pressure (Steam) | 50 psi [345 kPa] |
| Rangeability Sv | 100:1 |
| Fluid Temp Range (Water) | 20…338°F [-7…170°C] |
| Cv Range [Gpm] | 17…47 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 15…40 m³/h |
| Flow Characteristic | modified equal percentage |
| Servicing | repack kits available |
| Valve Body | Bronze |
| Valve Plug | Stainless steel AISI 316 |
| Stem | 316 stainless steel |
| Seat | Stainless steel AISI 316 |
| Stem Seal | EPDM O-ring |
| Body Pressure Rating | ANSI Class 250, up to 400 psi below 150°F |
| Fluid Temp Range (Steam) | 32…338°F [0…170°C] |
| Maximum Differential Pressure (Water) | 50 psi [345 kPa] |
Specifications
| SKU | CS3658585 |
|---|---|
| MPN | G240S-N |
