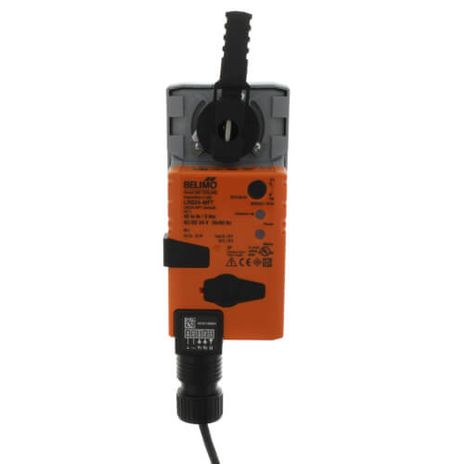

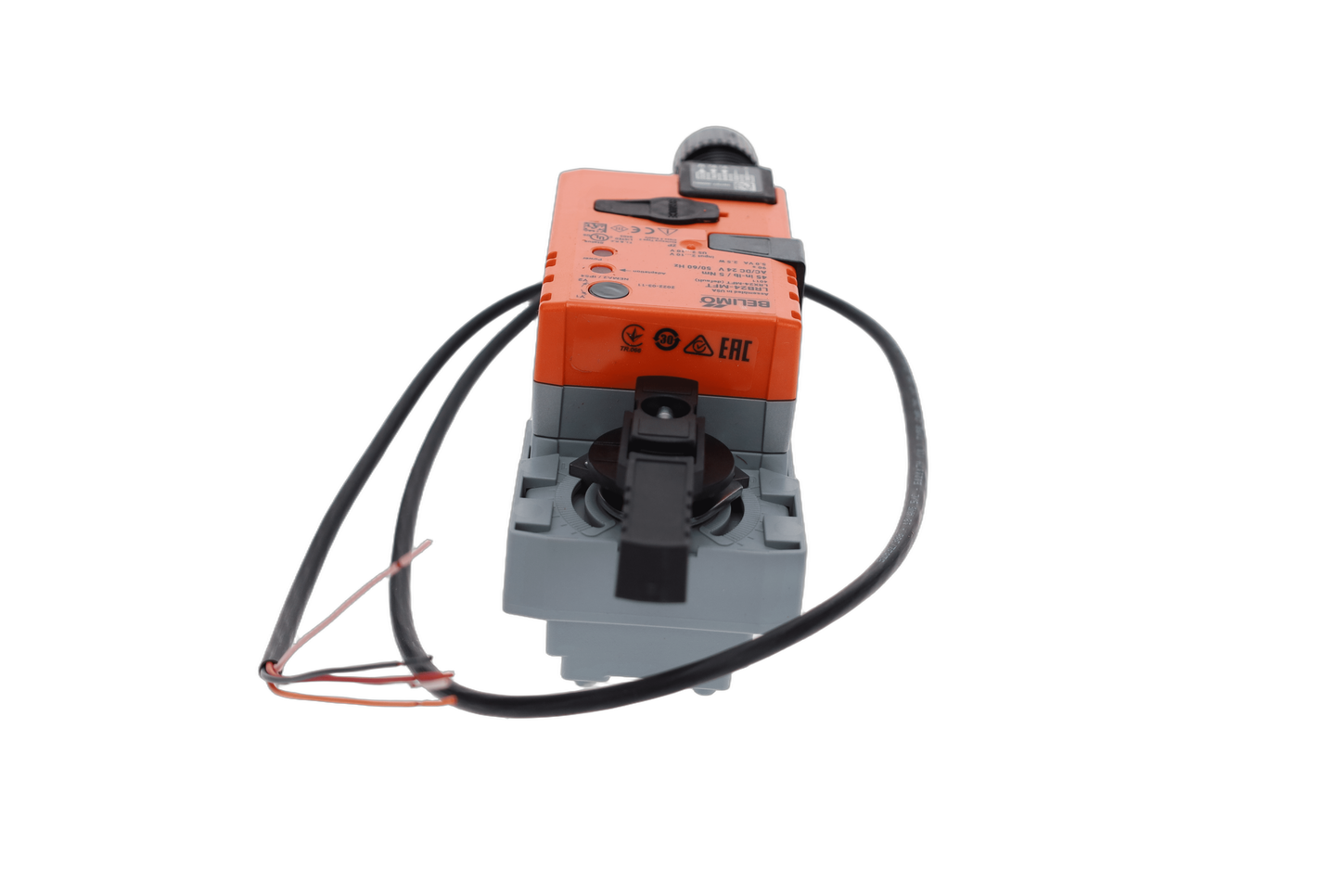

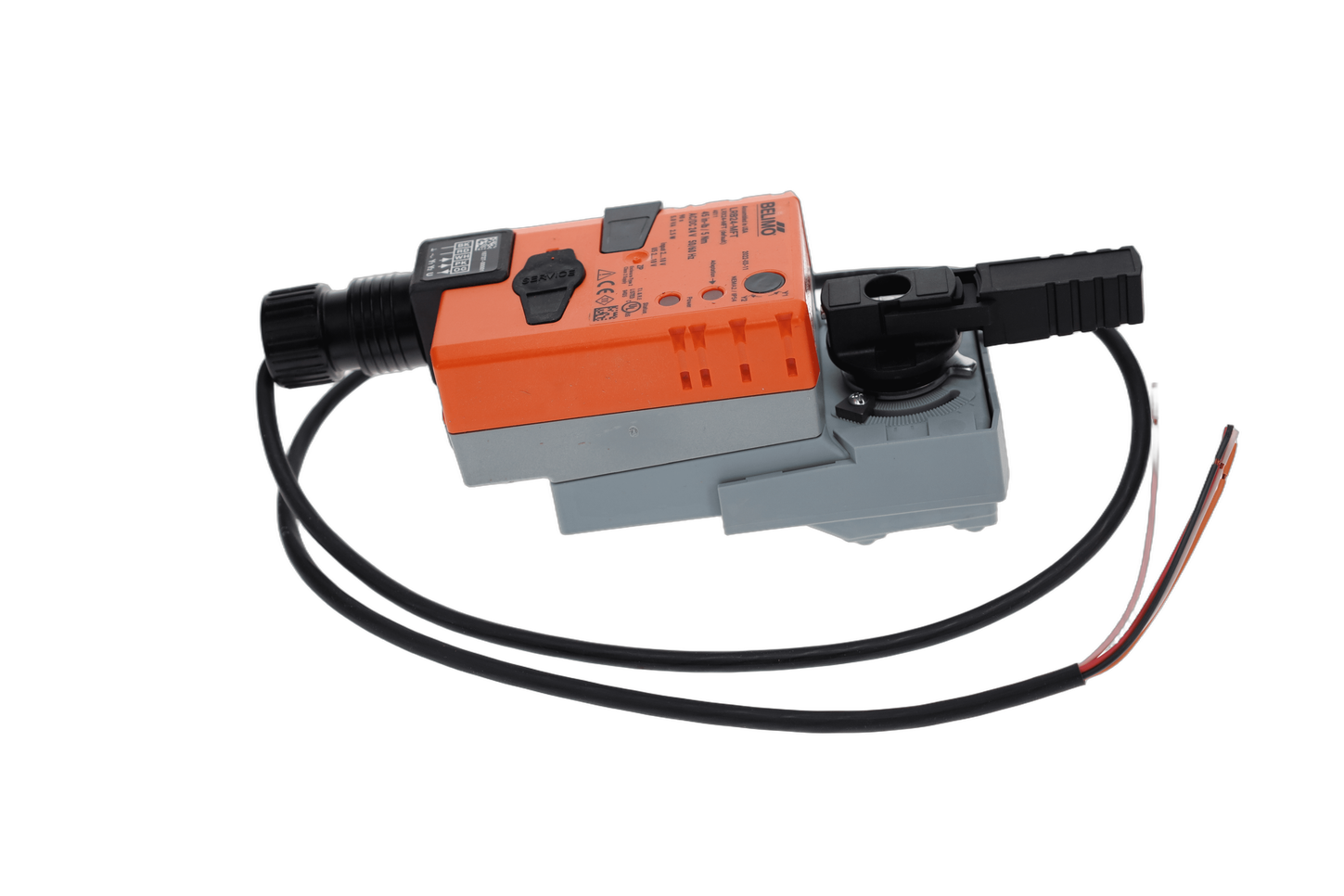

Belimo LRB24-MFT

Name: Belimo LRB24-MFT
Brand: Belimo
SKU: CS3007647
Price: 309.40 USD
Availability: InStock

SKU: CS3007647MPN: LRB24-MFT

Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

$309.40

Unit

20 in stock

Quantity

remove

add

Documents

Belimo LRB24-MFT Data Sheet

Product Details

Non-Spring Return, Proportional Control Actuator, MFT.

For use with 2-way Characterized Control Valves (½”-1-¼”) and 3-way Characterized Control Valves (½”-1”).

Attributes

Control	MFT/programmable
Fail-Safe	Non-Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	1.2 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic thoughout 0…90° rotation
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for DC 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM and On/Off
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	90°
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, pluggable
Running Time (Motor)	default 150 s, variable 35…150 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Fail-Safe Function	Non fail-safe
Control Type Web	MFT/Programmable
Fail-Safe	NO
