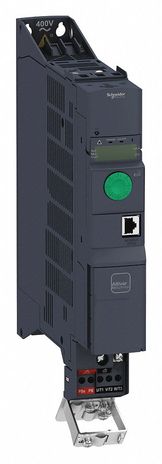

Square D ATV320U04N4B

SKU: CS3904406MPN: ATV320U04N4B

variable speed drive, Altivar Machine ATV320, 0.37kW, 380 to 500V, 3 phases, book

Square D ATV320U04N4B
$719.98
Unit
Available on backorder
remove
add

Product Details

Altivar 320 Variable Speed Drive:

  • Motor Power kW: 0.37 kW for Heavy Duty* Motor Power HP: 0.5 HP for Heavy Duty* Rated Supply Voltage: 380...500 V * Network Number of Phases: 3 Phase* Degree of Protection: IP20

Attributes

4 Quadrant Operation Possible 1.0000
Acceleration And Deceleration Ramps linear# #U# #S# #CUS# #ramp switching# #acceleration/deceleration ramp adaptation# #acceleration/deceleration automatic stop with DC injection
Ambient Air Temperature For Storage -25-70 °C
Ambient Air Transport Temperature -25-70 °C
Analogue Input Number 3.0000
Analogue Output Number 1.0000
Asynchronous Motor Control Profile voltage/frequency ratio, 5 points# #flux vector control without sensor, standard# #voltage/frequency ratio - Energy Saving, quadratic U/f# #flux vector control without sensor - Energy Saving# #voltage/frequency ratio, 2 points
Base Load Current At High Overload 0.167
Brake Chopper Integrated 1.0000
Braking To Standstill by DC injection
Communication Port Protocol Modbus serial# #CANopen
Discrete Input Logic positive logic (source)# #negative logic (sink)
Discrete Input Number 7.0
Discrete Output Number 3.0000
Emc Filter Class C2 EMC filter integrated
Environmental Class During Operation class 3C3 according to IEC 60721-3-3# #class 3S2 according to IEC 60721-3-3
Format Of The Drive book
Marking CE# #ATEX# #UL# #CSA# #EAC# #RCM
Maximum Acceleration Under Shock Impact During Operation 150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation 10 m/s² at 13…200 Hz
Maximum Deflection Under Vibratory Load During Operation 1.5 mm at 2…13 Hz
Maximum Output Frequency 0.599 kHz
Maximum Output Voltage 500 V
Motor Slip Compensation automatic whatever the load# #adjustable 0…300 %# #not available in voltage/frequency ratio (2 or 5 points)
Mounting Mode cabinet mount
Network Frequency 50…60 Hz
Nominal Output Current 1.5 A
Nominal Switching Frequency 4 kHz
Operating Position vertical ± 10 degree
Overvoltage Category III
Permitted Relative Humidity During Operation class 3K5 according to EN 60721-3
Pollution Degree 2.0
Product Certifications CE# #ATEX# #NOM# #GOST# #EAC# #RCM# #KC
Product Or Component Type variable speed drive
Product Specific Application complex machines
Prospective Line Isc 5 kA
Range Of Product Altivar Machine ATV320
Regulation Loop adjustable PID regulator
Relative Symmetric Network Frequency Tolerance 0.050000000745058
Standards EN/IEC 61800-5-1
Synchronous Motor Control Profile vector control without sensor
Variant standard version
Volume Of Cooling Air 9.4 m3/h
With Safety Function Safe Brake Management Sbc Sbt 0.0000
With Safety Function Safe Direction Sdi 0.0000
With Safety Function Safe Operating Stop Sos 0.0000
With Safety Function Safe Position Sp 0.0000
With Safety Function Safe Programmable Logic 0.0000
With Safety Function Safe Speed Monitor Ssm 0.0000
With Safety Function Safe Stop 1 Ss1 1.0000
With Safety Function Safe Torque Off Sto 1.0000
With Safety Function Safely Limited Position Slp 0.0000
With Safety Function Safely Limited Speed Sls 1.0000
With Sft Fct Safe Stop 2 Ss2 0.0000

Specifications

SKUCS3904406
MPNATV320U04N4B
