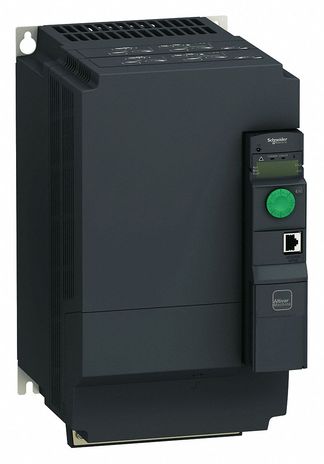

Square D ATV320D15N4B

Name: Square D ATV320D15N4B
Brand: Square D
SKU: CS3341944
Price: 3077.67 USD
Availability: OutOfStock

SKU: CS3341944MPN: ATV320D15N4B

variable speed drive, Altivar Machine ATV320, 15kW, 380 to 500V, 3 phases, book

$3,077.67

Unit

Available on backorder

Quantity

remove

add

Product Details

Altivar 320 Variable Speed Drive:

Motor Power kW: 15 kW for Heavy Duty* Motor Power HP: 20 HP for Heavy Duty* Rated Supply Voltage: 380...500 V * Network Number of Phases: 3 Phase* Degree of Protection: IP20

Attributes

4 Quadrant Operation Possible	1.0000
Acceleration And Deceleration Ramps	linear# #U# #S# #CUS# #ramp switching# #acceleration/deceleration ramp adaptation# #acceleration/deceleration automatic stop with DC injection
Ambient Air Temperature For Storage	-25-70 °C
Ambient Air Transport Temperature	-25-70 °C
Analogue Input Number	3.0000
Analogue Output Number	1.0000
Asynchronous Motor Control Profile	voltage/frequency ratio, 5 points# #flux vector control without sensor, standard# #voltage/frequency ratio - Energy Saving, quadratic U/f# #flux vector control without sensor - Energy Saving# #voltage/frequency ratio, 2 points
Base Load Current At High Overload	0.167
Brake Chopper Integrated	1.0000
Braking To Standstill	by DC injection
Communication Port Protocol	Modbus serial# #CANopen
Discrete Input Logic	positive logic (source)# #negative logic (sink)
Discrete Input Number	7.0
Discrete Output Number	3.0000
Emc Filter	class C3 EMC filter integrated
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3# #class 3S2 according to IEC 60721-3-3
Format Of The Drive	book
Marking	CE# #ATEX# #UL# #CSA# #EAC# #RCM
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13…200 Hz
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2…13 Hz
Maximum Output Frequency	0.599 kHz
Maximum Output Voltage	500 V
Motor Slip Compensation	automatic whatever the load# #adjustable 0…300 %# #not available in voltage/frequency ratio (2 or 5 points)
Mounting Mode	wall mount
Network Frequency	50…60 Hz
Nominal Output Current	33.0 A
Nominal Switching Frequency	4 kHz
Operating Position	vertical ± 10 degree
Overvoltage Category	III
Permitted Relative Humidity During Operation	class 3K5 according to EN 60721-3
Pollution Degree	2.0
Product Certifications	CE# #ATEX# #NOM# #GOST# #EAC# #RCM# #KC
Product Or Component Type	variable speed drive
Product Specific Application	complex machines
Prospective Line Isc	22 kA
Range Of Product	Altivar Machine ATV320
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	0.050000000745058
Standards	EN/IEC 61800-5-1
Synchronous Motor Control Profile	vector control without sensor
Variant	standard version
Volume Of Cooling Air	156.0 m3/h
With Safety Function Safe Brake Management Sbc Sbt	0.0000
With Safety Function Safe Direction Sdi	0.0000
With Safety Function Safe Operating Stop Sos	0.0000
With Safety Function Safe Position Sp	0.0000
With Safety Function Safe Programmable Logic	0.0000
With Safety Function Safe Speed Monitor Ssm	0.0000
With Safety Function Safe Stop 1 Ss1	1.0000
With Safety Function Safe Torque Off Sto	1.0000
With Safety Function Safely Limited Position Slp	0.0000
With Safety Function Safely Limited Speed Sls	1.0000
With Sft Fct Safe Stop 2 Ss2	0.0000
