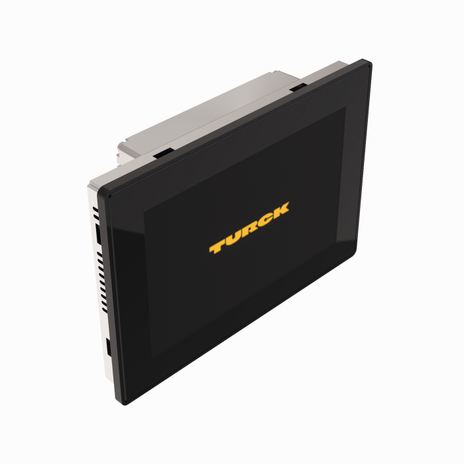

Turck TX710HB-P3CV01

100007474 - CODESYS 3

TX700 HMI/PLC Series

10” Sunlight Readable Display — CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing and Glass Front with a Capacitive Touch

• 10” TFT wide screen color display
• LED backlight
• 1280 x 800 pixel resolution
• 16 M colors
• Capacitive touchscreen with glass front
• Higher level of brightness for improved readability in sunlight
• Greater screen quality thanks to liquid bonding (LOCA), which improves contrast and brightness by reducing reflection and refraction
• Extended temperature range
• Increased robustness against mechanical influences
• All-metal housing, coated to protect the PCB

• 3 RJ45 Ethernet ports with 10/100 Mbit
• 1 serial interface (RS232, RS485, RS422)
• 2 USB host ports
• 1 SD card slot
