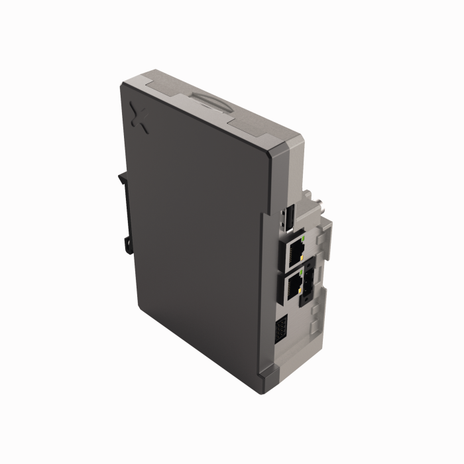

Turck TX700S-P3WV01
SKU: CS3878258MPN: TX700S-P3WV01Alternate Part #: 100009353UPC/EAN: 4047101513066
100009353 - CODESYS 3
$1,228.15
UnitAvailable on backorder
Product Details
TX700 HMI/PLC Series
Single-Core IOT Gateway — CODESYS V3 PLC with WEB VISU
DIN Rail Device for the Control Cabinet
- 2 separated RJ45 Ethernet ports with 10/100 Mbit
- 1 serial interface (RS232, RS485, RS422)
- 1 USB host port
- 1 SD card slot
- 1 expansion module slot
Attributes
| Customs Tariff Number | 85371091200.0000 |
| Device Function | PLC/IoT gateway |
| Ecl Ss Code V5 1 4 | 27242302 -/- Graphic panel (display and console) |
| Fieldbus Master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus Slave | Modbus TCP, Modbus RTU, PROFINET |
| Memory | 4 GB Flash |
| Processor | ARM Cortex A8, 1 GHz |
| Product Family | TX700 |
| Programming | CODESYS V3 |
| Protection Class | IP20 |
| Ram Memory | 512 MB |
Specifications
| SKU | CS3878258 |
|---|---|
| MPN | TX700S-P3WV01 |
| Alternate Part # | 100009353 |
| UPC/EAN | 4047101513066 |
