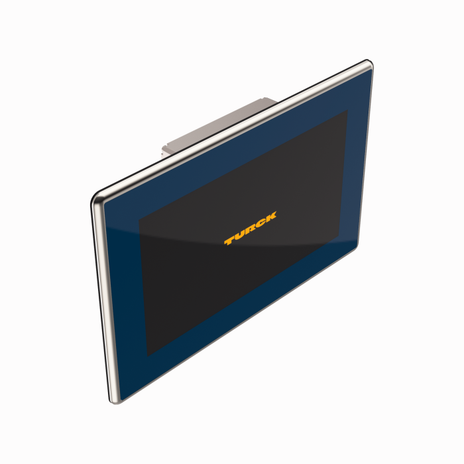

Turck TX715FB-P3CV01
SKU: CS3878266MPN: TX715FB-P3CV01Alternate Part #: 100007472UPC/EAN: 4047101509571
100007472 - CODESYS 3
$6,305.33
UnitAvailable on backorder
Product Details
TX700 HMI/PLC Series
15” Display for F\&B — CODESYS V3 PLC with TARGET and WEB VISU
High-Quality Metal Housing and Glass Front with a Capacitive Touch
- 15” TFT wide screen color display
- LED backlight
- 1366x768 pixel resolution
- 16 M colors
- Capacitive touchscreen with glass front and polyester coating
- Stainless steel frame and food-grade seal
- IP69 degree of protection, high-pressure watertight up to 80 °C
- Acid- and chemical-resistant
- 3 RJ45 Ethernet ports with 10/100 Mbit
- 1 serial interface (RS232, RS485, RS422)
- 2 USB host ports
- 1 SD card slot
Attributes
| Application Area | Food industry |
| Customs Tariff Number | 85371091200.0000 |
| Device Function | HMI/PLC |
| Diagonal Screen Size | 15 ″ |
| Ecl Ss Code V5 1 4 | 27242302 -/- Graphic panel (display and console) |
| Fieldbus Master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus Slave | Modbus TCP, Modbus RTU, PROFINET |
| Format | 16:9 |
| Memory | 8 GB Flash |
| Processor | ARM Cortex A9, Quad-core 800 MHz |
| Product Family | TX700 |
| Programming | CODESYS V3 |
| Protection Class | IP69 front, IP20 rear |
| Ram Memory | 2048 MB |
| Touchscreen | Capacitive, Glass front |
Specifications
| SKU | CS3878266 |
|---|---|
| MPN | TX715FB-P3CV01 |
| Alternate Part # | 100007472 |
| UPC/EAN | 4047101509571 |
You may also like
Turck TX715-P3CV01
$4,953.93Unit
Turck TX707FB-P3CV01
$3,644.71Unit

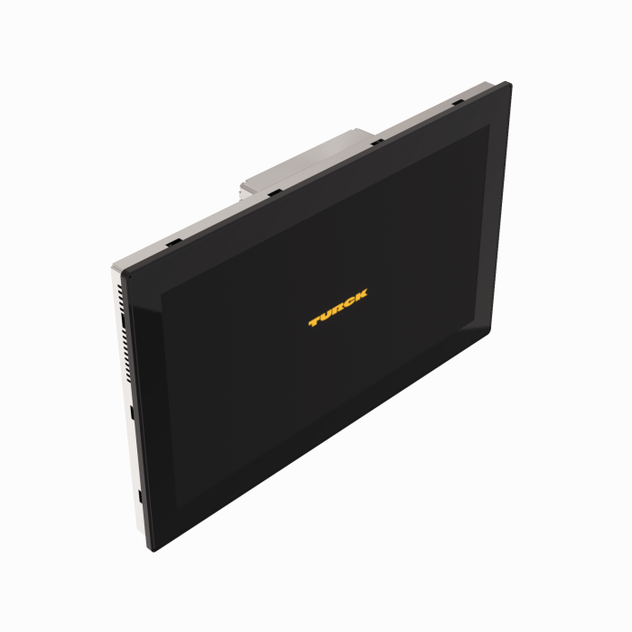

Turck TX721-P3CV01
