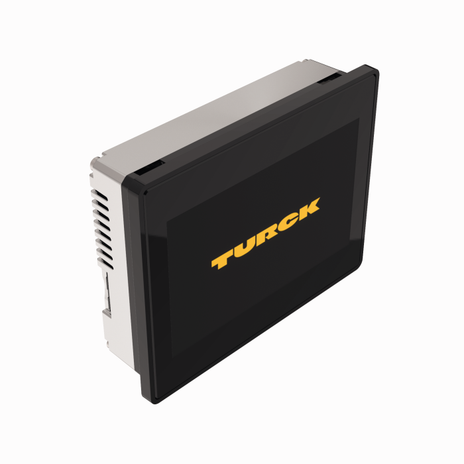

Turck TX707-P3CV01
SKU: CS3878260MPN: TX707-P3CV01Alternate Part #: 100002030UPC/EAN: 4047101456370
100002030 - CODESYS 3
$2,533.04
UnitAvailable on backorder
Product Details
TX700 HMI/PLC Series
7” Display - CODESYS V3 PLC with TARGET and WEB VISU
High-Quality Metal Housing and Glass Front with a Capacitive Touch
- 7” TFT wide screen color display
- LED backlight
- 800 x 480 pixel resolution
- 16 M colors
- Capacitive touchscreen with glass front
- 3 RJ45 Ethernet ports with 10/100 Mbit
- 1 serial interface (RS232, RS485, RS422)
- 2 USB host ports
- 1 SD card slot
Attributes
| Application Area | Factory Automation |
| Customs Tariff Number | 85371091200.0000 |
| Device Function | HMI/PLC |
| Diagonal Screen Size | 7 ″ |
| Ecl Ss Code V5 1 4 | 27242302 -/- Graphic panel (display and console) |
| Fieldbus Master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus Slave | Modbus TCP, Modbus RTU |
| Format | 16:9 |
| Memory | 4 GB Flash |
| Processor | ARM Cortex A9, Dual-core 800 MHz |
| Product Family | TX700 |
| Programming | CODESYS V3 |
| Protection Class | IP66 front, IP20 rear |
| Ram Memory | 1024 MB |
| Touchscreen | Capacitive, Glass front |
Specifications
| SKU | CS3878260 |
|---|---|
| MPN | TX707-P3CV01 |
| Alternate Part # | 100002030 |
| UPC/EAN | 4047101456370 |
