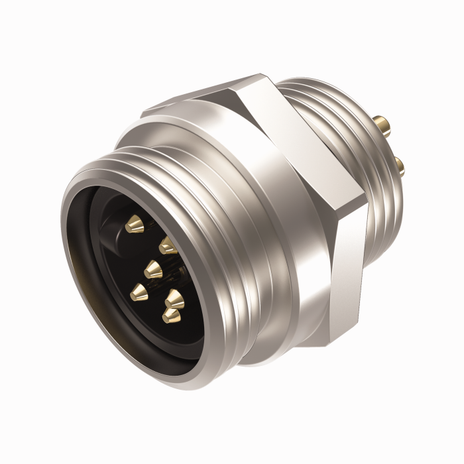

Turck RSFL 66
SKU: CS3861700MPN: RSFL 66Alternate Part #: U5229-13
U5229-13 - RECEPT,⅞IN.MINIFAST
$22.42
UnitAvailable on backorder
Product Details
Actuator and Sensor Receptacle
Front Mount
- Female ⅞″ minifast Receptacle, 6 pin
- Mounting thread: ½″-14 NPSM
- Solder connection
Attributes
| Approvals | RoHS, UL 2238 |
| Current | 9 A |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | ½″-14 NPSM |
| Number Of Contacts | 6 |
| Protection Class When Coupled | IP67 |
| Voltage | 600 V |
Specifications
| SKU | CS3861700 |
|---|---|
| MPN | RSFL 66 |
| Alternate Part # | U5229-13 |
