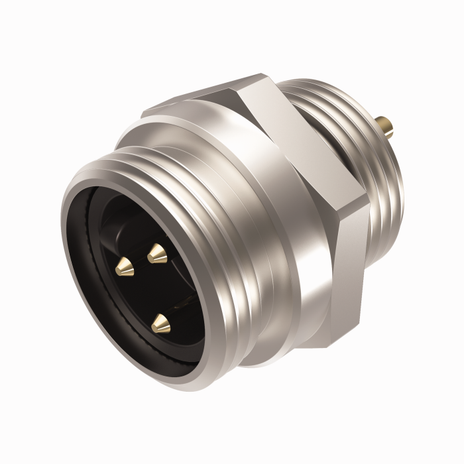

Turck RSFL 36
SKU: CS3861691MPN: RSFL 36Alternate Part #: U5229-10
U5229-10 - RECEPT,⅞IN.MINIFAST
$12.07
UnitAvailable on backorder
Product Details

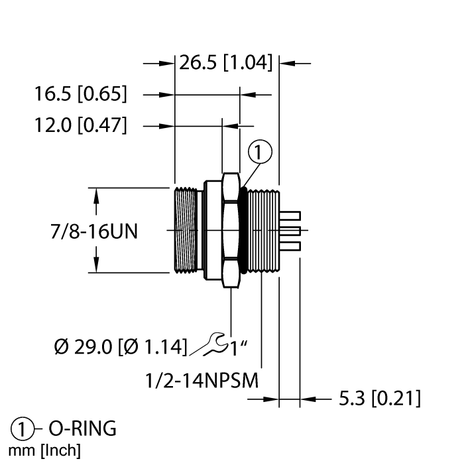

Actuator and Sensor Receptacle
Front Mount
- ⅞″ minifast, Male, Receptacle, 3 pin
- Mounting thread: ½″-14 NPSM
- Solder connection
Attributes
| Approvals | RoHS, UL 2238 |
| Current | 9 A |
| Customs Tariff Number | 85366990990.0000 |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | ½″-14 NPSM |
| Number Of Contacts | 3 |
| Protection Class When Coupled | IP67 |
| Voltage | 600 V |
Specifications
| SKU | CS3861691 |
|---|---|
| MPN | RSFL 36 |
| Alternate Part # | U5229-10 |
