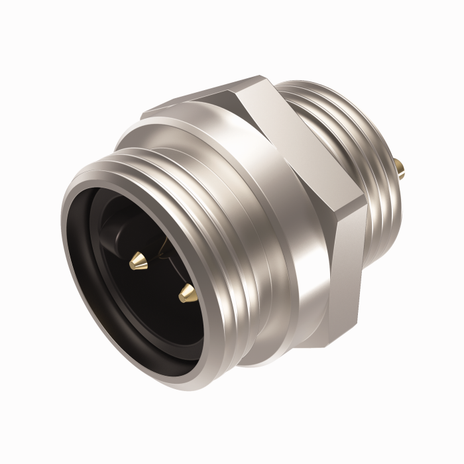

Turck RSFL 26
SKU: CS3861690MPN: RSFL 26Alternate Part #: U5229-1
U5229-1 - RECEPT,⅞IN.MINIFAST
$13.08
UnitAvailable on backorder
Product Details
Actuator and Sensor Receptacle
Front Mount
- ⅞″ minifast, Male, Receptacle, 2 pin
- Mounting thread: ½″-14 NPSM
- Solder connection
Attributes
| Approvals | RoHS, UL 2238 |
| Current | 9 A |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | ½″-14 NPSM |
| Number Of Contacts | 2 |
| Protection Class When Coupled | IP67 |
| Voltage | 600 V |
Specifications
| SKU | CS3861690 |
|---|---|
| MPN | RSFL 26 |
| Alternate Part # | U5229-1 |
