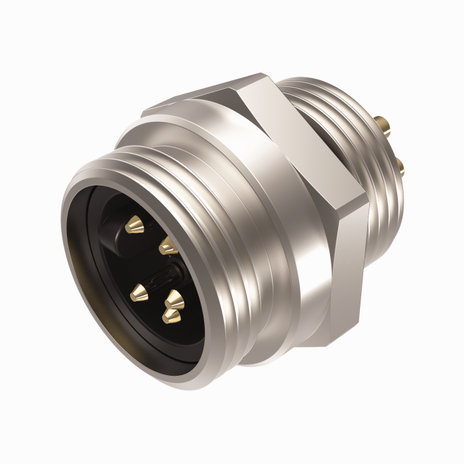

Turck RSFL 56
SKU: CS3861698MPN: RSFL 56Alternate Part #: U5229-12
U5229-12 - RECEPT,⅞IN.MINIFAST
$15.93
UnitAvailable on backorder
Product Details
Actuator and Sensor Receptacle
Front Mount
- Female ⅞″ minifast Receptacle, 5 pin
- Mounting thread: ½″-14 NPSM
- Solder connection
Attributes
| Approvals | RoHS, UL 2238 |
| Current | 9 A |
| Customs Tariff Number | 85366990990.0000 |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | ½″-14 NPSM |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP67 |
| Voltage | 600 V |
Specifications
| SKU | CS3861698 |
|---|---|
| MPN | RSFL 56 |
| Alternate Part # | U5229-12 |
