Turck RM-29S10C-9C28B-R3M12

SKU: CS3854494MPN: RM-29S10C-9C28B-R3M12Alternate Part #: 1544419UPC/EAN: 4047101255836

1544419 - MULTITURN

Turck RM-29S10C-9C28B-R3M12
$2,611.69
Unit
Available on backorder
remove
add

Product Details

Absolute Rotary Encoder - Multiturn

Industrial Line

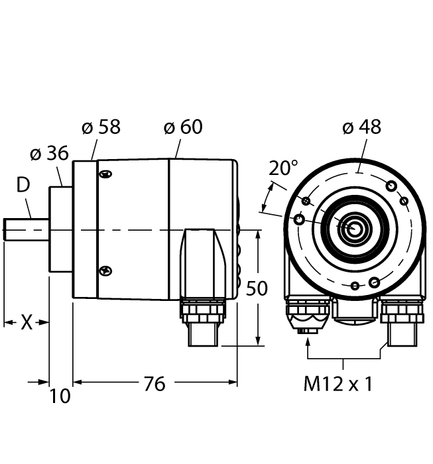

  • Clamping flange, Ø 58 mm
  • Solid shaft, Ø 10 mm × 20 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on shaft side
  • -40…+80 °C
  • Max. 3000 rpm
  • EtherCAT®
  • Removable bus cover with male, 3 × M12
  • Singleturn, resolution scalable to 16 bit (default 13-bit)
  • Multiturn resolution max. 12 bit, scalable

Attributes

Ambient Temperature -40…+80 °C
Communication Protocol EtherCAT
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270501 -/- Encoder, absolute
Electrical Connection Bus connection
Encoder Line Industrial-Line
Flange Diameter Ø  58 mm
Flange Type Clamping flange
Housing Material Die-cast zinc
Operating Voltage 10…30 VDC
Output Type Absolute multiturn
Protection Class Housing IP67
Protection Class Shaft IP67
Shaft Diameter D Mm 10 mm
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS3854494
MPNRM-29S10C-9C28B-R3M12
Alternate Part #1544419
UPC/EAN4047101255836
