All ProductsTurck

Turck RM-36B12E-9A28B-R3M12

SKU: CS3854541MPN: RM-36B12E-9A28B-R3M12Alternate Part #: 1544445UPC/EAN: 4047101256086

1544445 - MULTITURN

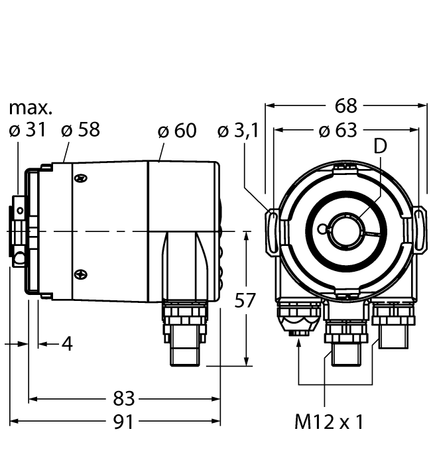

Turck RM-36B12E-9A28B-R3M12, RM-36B12E-9C28B-R3M12
$2,328.83
Unit
Available on backorder
remove
add

Product Details

Absolute Rotary Encoder - Multiturn

Industrial Line

  • Flange with stator coupling, Ø 63 mm
  • Hollow shaft, Ø 12 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on shaft side
  • -40…+80 °C
  • Max. 3000 rpm
  • Profibus
  • Removable bus cover with male, 3 × M12
  • Singleturn, resolution scalable to 16 bit (default 13-bit)
  • Multiturn resolution max. 12 bit, scalable

Attributes

Ambient Temperature -40…+80 °C
Communication Protocol PROFIBUS-DP
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270501 -/- Encoder, absolute
Electrical Connection Bus connection
Encoder Line Industrial-Line
Flange Diameter Ø  63 mm
Flange Type Flange with stator coupling
Housing Material Die-cast zinc
Operating Voltage 10…30 VDC
Output Type Absolute multiturn
Protection Class Housing IP67
Protection Class Shaft IP67
Shaft Diameter D Mm 12 mm
Shaft Type Hollow shaft
Technology Optical

Specifications

SKUCS3854541
MPNRM-36B12E-9A28B-R3M12
Alternate Part #1544445
UPC/EAN4047101256086
