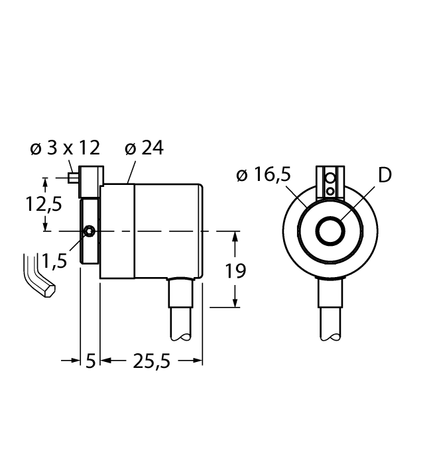

Turck RI-02C6S3-1D10-CA
SKU: CS3832255MPN: RI-02C6S3-1D10-CAAlternate Part #: 100028253
100028253 - INCREMENTAL
$521.89
UnitAvailable on backorder
Product Details
Incremental Hollow Shaft Encoder
Industrial Line
- Incremental Hollow Shaft Encoder
- Protection class IP50 on shaft side
- ‐20…+85 °C
- Max. 12,000 rpm
- 5…24 VDC
- Cable connection, 8-pin
- Push-pull 7272, invertible
- Pulse frequency max. 160 kHz
- 10 pulses per revolution
Attributes
| Ambient Temperature | -20…+85 °C |
| Ecl Ss Code V5 1 4 | 27270502 -/- Encoder, incremental |
| Electrical Connection | Cable |
| Flange Diameter | Ø 24 mm |
| Flange Type | Flange with torque stop |
| Housing Material | Aluminium |
| Operating Voltage | 5…24 VDC |
| Output Function | Push-Pull/HTL, with inverted signals |
| Output Type | Incremental |
| Protection Class Housing | IP64 |
| Resolution Incremental | 10 ppr |
| Shaft Diameter D Mm | 6 mm |
| Shaft Type | Hollow shaft |
| Technology | Optical |
Specifications
| SKU | CS3832255 |
|---|---|
| MPN | RI-02C6S3-1D10-CA |
| Alternate Part # | 100028253 |
