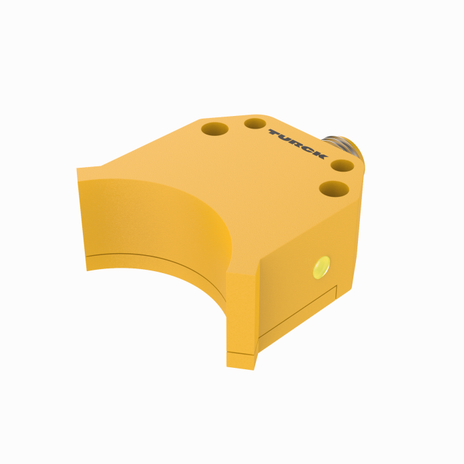

Turck NI4-DS20-2Y1X2-H1146
SKU: CS3814280MPN: NI4-DS20-2Y1X2-H1146Alternate Part #: 1050012UPC/EAN: 4047101199734
1050012 - FERRITE, DUAL, NAMUR, CON. M12
$197.92
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DS20
- Plastic, PBT‐GF30‐VO
- Two switching outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- DC 2-wire, nom. 8.2 VDC
- 2 outputs acc. to DIN EN 60947-5-6 (NAMUR)
- M12 x 1 male connector
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |

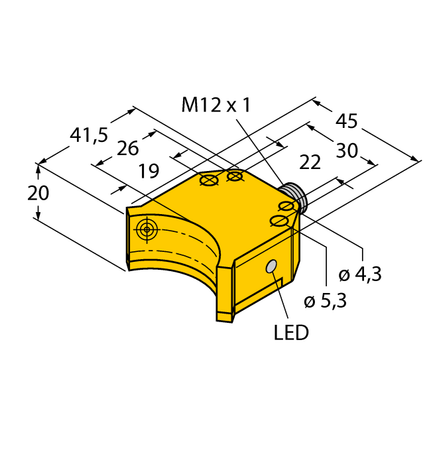

| Construction Size | 42 x 45 x 20 mm, DS20 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Mounting | Non-flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.050 kHz |
Specifications
| SKU | CS3814280 |
|---|---|
| MPN | NI4-DS20-2Y1X2-H1146 |
| Alternate Part # | 1050012 |
| UPC/EAN | 4047101199734 |
