All ProductsTurck

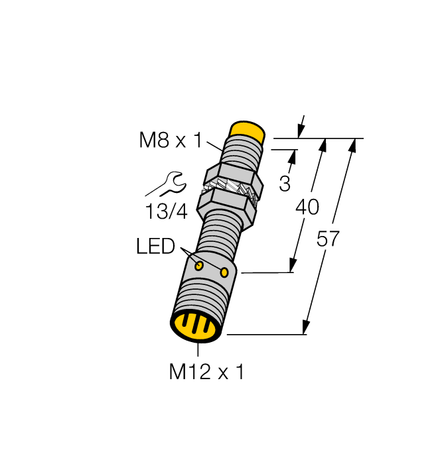

Turck NI3-EG08-AN7X-H1341

SKU: CS3814125MPN: NI3-EG08-AN7X-H1341Alternate Part #: 4669761

4669761 - FERRITE, BARREL, DC, CON. M12

Turck NI3-EG08-AN7X-H1341
Contact us for pricing and availability

Product Details

Inductive Sensor

  • Threaded barrel, M8 x 1
  • Stainless steel, 1.4427 SO
  • DC 3-wire, 10…30 VDC
  • NO contact, NPN output
  • TTL compatible
  • M12 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Customs Tariff Number 85365080.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Stainless steel, 1.4427 SO
Mounting Non-flush
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP67
Rated Switching Distance 3 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3814125
MPNNI3-EG08-AN7X-H1341
Alternate Part #4669761
