Turck NI15-Q30-AP6X-0.2-RS4T

SKU: CS3813939MPN: NI15-Q30-AP6X-0.2-RS4TAlternate Part #: 4659390

4659390 - FERRITE, RECT., DC, PIGTAIL M1

Turck NI15-Q30-AP6X-0.2-RS4T
$130.50
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 31 mm
  • Active face in front
  • Plastic, PBT‐GF30‐V0
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M12 x 1

Attributes

Ambient Temperature -25…+70 °C

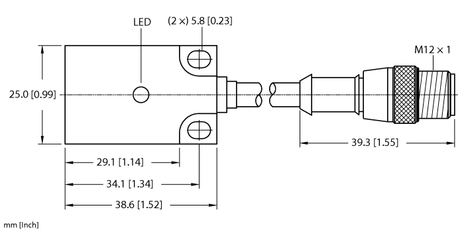

Construction Size 53 x 30 x 30.5 mm, Q30
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Plastic, PBT-GF30-V0
Mounting Non-flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 15 mm
Switching Frequency 0.50 kHz

Specifications

SKUCS3813939
MPNNI15-Q30-AP6X-0.2-RS4T
Alternate Part #4659390
