Turck BI10U-Q14-AP6X2-0.2-RS4T
SKU: CS4209374MPN: BI10U-Q14-AP6X2-0.2-RS4TAlternate Part #: 1608790UPC/EAN: 4047101636932
1608790 - FERRITE, RECT., DC, PIGTAIL M1
$158.38
UnitAvailable on backorder
Product Details

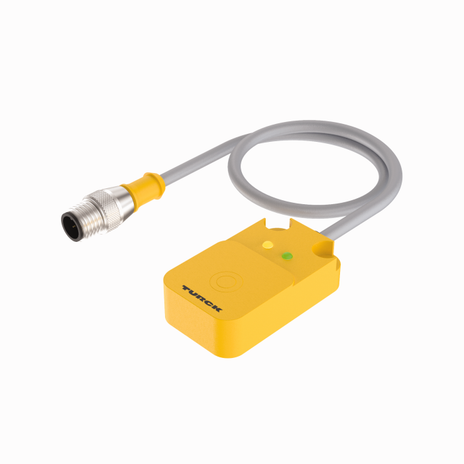

Inductive Sensor
- Rectangular, height 14 mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
Attributes
| Ambient Temperature | -30…+85 °C |

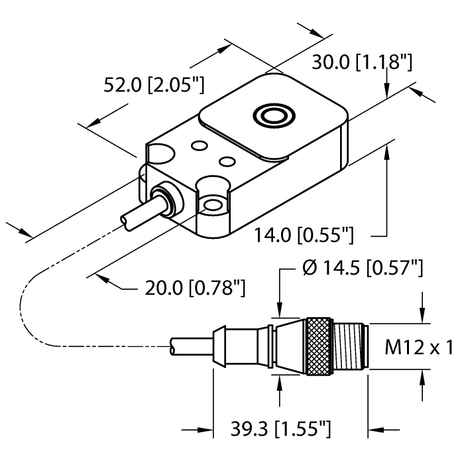

| Construction Size | 52 x 30 x 14 mm, Q14 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 10 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS4209374 |
|---|---|
| MPN | BI10U-Q14-AP6X2-0.2-RS4T |
| Alternate Part # | 1608790 |
| UPC/EAN | 4047101636932 |
