All ProductsTurck

Turck FCI-TCD04A4P-ARX-H1140

SKU: CS3802236MPN: FCI-TCD04A4P-ARX-H1140Alternate Part #: 6870626UPC/EAN: 4047101174458

6870626 - CAL (INL), COMP-MON, GEN., GEN

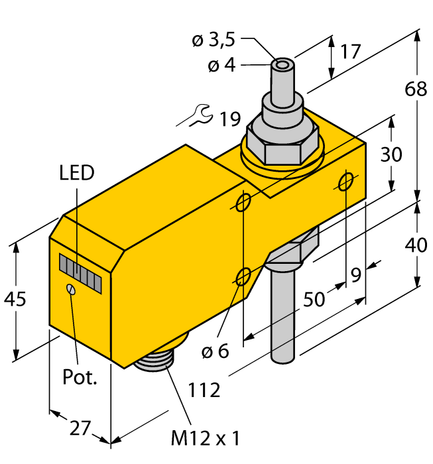

Turck FCI-TCD04A4P-AP8X-H1141, FCI-TCD04A4P-ARX-H1140
$888.01
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Inline Sensor with Integrated Processor

  • Flow sensor for liquid media
  • Calorimetric principle
  • Adjustment via potentiometer
  • LED band
  • Operating range 1…200 ml/min
  • Mechanical Connection: Barrel, 4 mm
  • DC 4-wire, 21.6…26.4 VDC
  • NO contact, relay output
  • Plug-in device, M12 x 1

Attributes

Ambient Temperature 0…+60 °C
Customs Tariff Number 90261021000.0000
Design Inline
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Plastic, PBT
Medium liquids
Medium Temperature 0…+60 °C
Operating Voltage 21.6…26.4 VDC
Output Function NO contact, Relay output
Process Connection Barrel 4 mm
Protection Class IP67
Sensor Material Stainless steel

Specifications

SKUCS3802236
MPNFCI-TCD04A4P-ARX-H1140
Alternate Part #6870626
UPC/EAN4047101174458
