All ProductsTurck

Turck FCI-D04A4P-LIX-H1141

SKU: CS977276MPN: FCI-D04A4P-LIX-H1141Alternate Part #: 6870641UPC/EAN: 4047101174601

6870641 - CAL (INL), COMP-MON, GEN., GEN

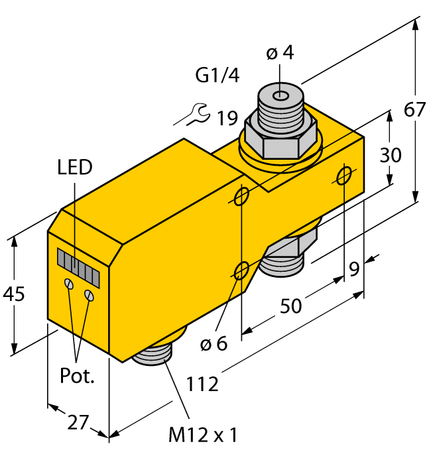

Turck FCI-D04A4P-LIX-H1141
$1,029.03
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Inline Sensor with Integrated Processor

  • Flow sensor for liquid media
  • Calorimetric principle
  • Adjustment via potentiometer
  • LED band
  • Operating range 0.01…1 l/min
  • DC 3-wire, 21.6…26.4 VDC
  • 4…20 mA analog output
  • Connector device, M12 × 1

Attributes

Ambient Temperature 0…+60 °C
Approvals UL
Current Output 4…20 mA
Customs Tariff Number 90261021000.0000
Design Inline
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Plastic, PBT
Medium liquids
Medium Temperature 0…+80 °C
Operating Voltage 21.6…26.4 VDC
Output Function Analog output
Process Connection G ¼’‘
Protection Class IP67
Sensor Material Stainless steel

Specifications

SKUCS977276
MPNFCI-D04A4P-LIX-H1141
Alternate Part #6870641
UPC/EAN4047101174601
