All ProductsTurck

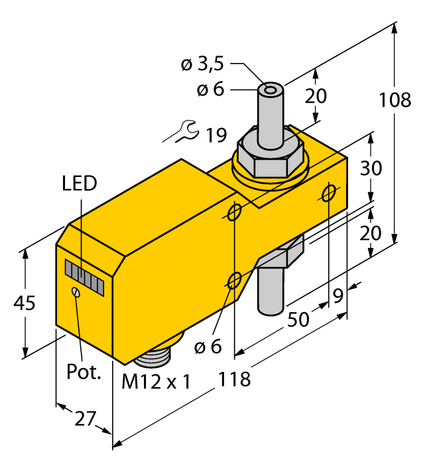

Turck FCI-TCD04A4P-AP8X-H1141/D084

SKU: CS3802235MPN: FCI-TCD04A4P-AP8X-H1141/D084Alternate Part #: 6870682UPC/EAN: 4047101175011

6870682 - CAL (INL), COMP-MON, GEN., GEN

Turck FCI-TCD04A4P-AP8X-H1141/D084
$1,102.74
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Inline Sensor with Integrated Processor

  • Flow sensor for liquid media
  • Calorimetric principle
  • Adjustment via potentiometer
  • LED band
  • Operating range 1…200 ml/min
  • Mechanical Connection: Tube, 6 mm, to connect to cutting/compression ferrule fitting
  • DC 3-wire, 19.2…28.8 VDC
  • NO contact, PNP output
  • Connector device, M12 × 1

Attributes

Ambient Temperature 0…+60 °C
Customs Tariff Number 90261021000.0000
Design Inline
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Plastic, PBT
Medium liquids
Medium Temperature 0…+60 °C
Operating Voltage 19.2…28.8 VDC
Output Function NO contact, PNP
Process Connection Barrel 6 mm
Protection Class IP67
Sensor Material Stainless steel

Specifications

SKUCS3802235
MPNFCI-TCD04A4P-AP8X-H1141/D084
Alternate Part #6870682
UPC/EAN4047101175011
