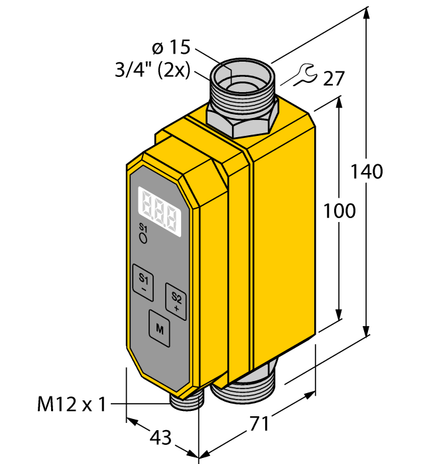

Turck FCI-D15A4P-2ARX-H1160/D209

SKU: CS3802226MPN: FCI-D15A4P-2ARX-H1160/D209Alternate Part #: 6870684UPC/EAN: 4047101175035

6870684 - CAL (INL), COMP-MON, GEN., GEN

Turck FCI-D15A4P-2ARX-H1160/D209, FCMI-3/4D12DYA4P-LIUP8X-H1141, FTCI-3/4D15A4P-2LIX-H1141, FTCI-3/4D15A4P-2LUX-H1141, FTCI-3/4D15A4P-2UP8X-H1141, FTCI-3/4D15A4P-4UP8X-H1160, FTCI-3/4D15A4P-LI-UP8X-H1141
$1,218.38
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Inline Sensor with Integrated Processor

Relay Output 24 VDC NO

  • Compact inline flow sensor
  • Calorimetric principle
  • Monitoring of flow rate
  • Monitoring of the medium temperature
  • For water-glycol mixtures and HT110/135 Galden fluid
  • Parametrized via button
  • Protected by software code
  • Operating range 3.8…38 l/min
  • 2 relay switching outputs
  • Switching outputs 24 VDC NO
  • Switchpoints freely adjustable

Attributes

Ambient Temperature -20…+60 °C
Customs Tariff Number 90261021000.0000
Design Inline
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow rate measurement
Housing Material Plastic, POM
Medium liquids
Medium Temperature -10…+95 °C
Operating Voltage 21.6…26.4 VDC
Output Function NO contact, Relay output
Process Connection ¾″ Swagelok
Protection Class IP65
Sensor Material Stainless steel

Specifications

SKUCS3802226
MPNFCI-D15A4P-2ARX-H1160/D209
Alternate Part #6870684
UPC/EAN4047101175035
