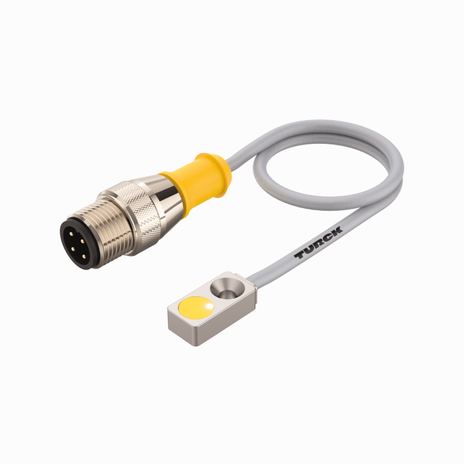

Turck BI2-Q4.7-AN6X-0.2-RS4T

SKU: CS3788749MPN: BI2-Q4.7-AN6X-0.2-RS4TAlternate Part #: 1614096

1614096 - FERRITE, RECT., DC, PIGTAIL M8

Turck BI2-Q4.7-AN6X-0.2-RS4T
Turck BI2-Q4.7-AN6X-0.2-RS4T
Turck BI2-Q4.7-AN6X-0.2-RS4T
Turck BI2-Q4.7-AN6X-0.2-RS4T
$143.88
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 4.7 mm
  • Active face on top
  • Metal housing, GD-ZnAI
  • DC 3-wire, 10…30 VDC
  • NO contact, NPN output
  • Pigtail with M12 × 1 connector

Attributes

Ambient Temperature 0…+85 °C

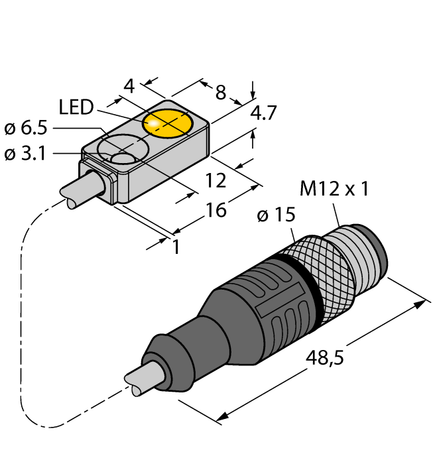

Construction Size 16 x 8 x 4.7 mm, Q4.7
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Metal, GD-ZnAl
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP67
Rated Switching Distance 2 mm
Switching Frequency 1.0 kHz

Specifications

SKUCS3788749
MPNBI2-Q4.7-AN6X-0.2-RS4T
Alternate Part #1614096
