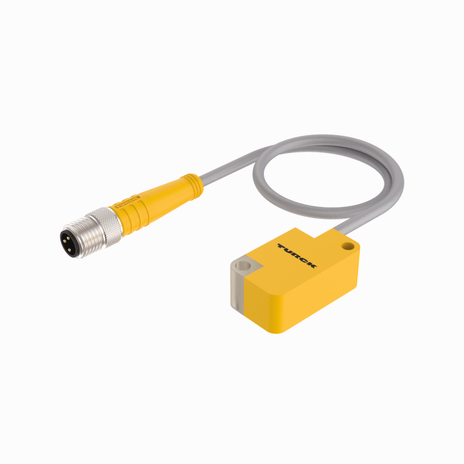

Turck BI2-Q10S-AN6X-0.2-PSG3M
SKU: CS3788694MPN: BI2-Q10S-AN6X-0.2-PSG3MAlternate Part #: 1619388
1619388 - FERRITE, RECT., DC, PIGTAIL M8
$116.10
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 10.2 mm
- Active face, lateral
- Cable outlet to all sides
- Plastic, PP-GF20
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Pigtail with male end M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

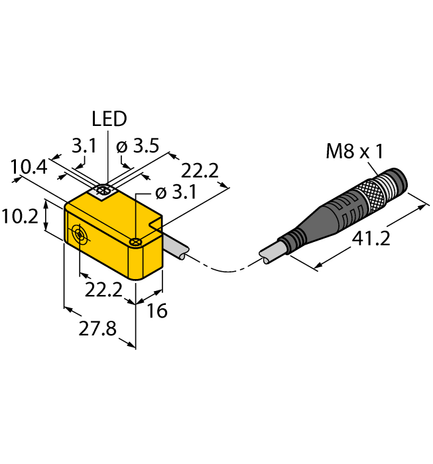

| Construction Size | 27.8 x 16 x 10.2 mm, Q10S |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, Ø 8 mm |
| Housing Material | Plastic, PP-GF20 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP67 |
| Rated Switching Distance | 2 mm |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS3788694 |
|---|---|
| MPN | BI2-Q10S-AN6X-0.2-PSG3M |
| Alternate Part # | 1619388 |
You may also like
Turck BI2-Q10S-AP6X-0.2-PSG3M
$116.10Unit
Turck BI2-Q10S-AN6X-0.2-RS4T
$116.10Unit
Turck BI2-Q10S-AP6X-0.2-PSG3
$116.10Unit
Turck BI2-Q10S-AN6X
$104.04UnitTurck BI2-Q10S-VN6X-0.2-RS4.4T
$127.46Unit

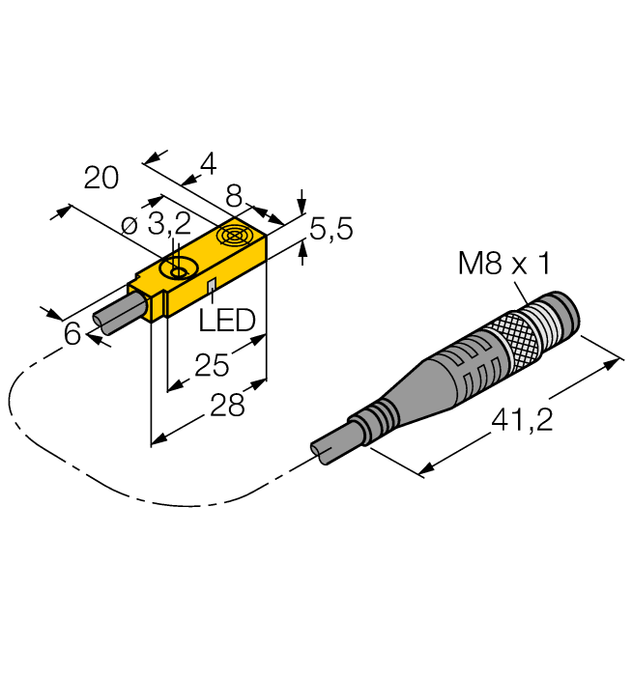

Turck BI2-Q5.5-AN6X-0.2-PSG3M
