Turck BI2-Q4.7-AP6X-0.3-PSG3M

SKU: CS3788758MPN: BI2-Q4.7-AP6X-0.3-PSG3MAlternate Part #: 1614005UPC/EAN: 4047101358742

1614005 - FERRITE, RECT., DC, PIGTAIL M8

Turck BI2-Q4.7-AP6X-0.3-PSG3M
Turck BI2-Q4.7-AP6X-0.3-PSG3M
Turck BI2-Q4.7-AP6X-0.3-PSG3M
Turck BI2-Q4.7-AP6X-0.3-PSG3M
$143.78
Unit
Available on backorder
remove
add

Product Details

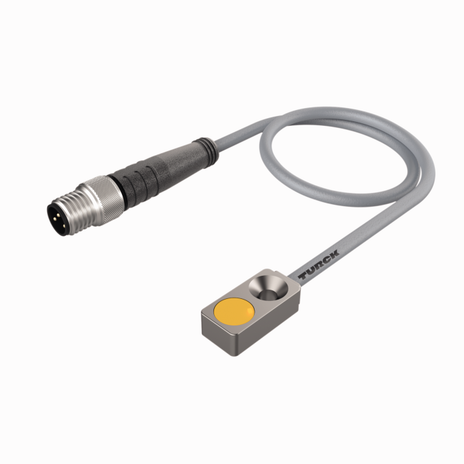

Inductive Sensor

  • Rectangular, height 4.7 mm
  • Active face on top
  • Metal housing, GD-ZnAI
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M8 x 1

Attributes

Ambient Temperature 0…+85 °C

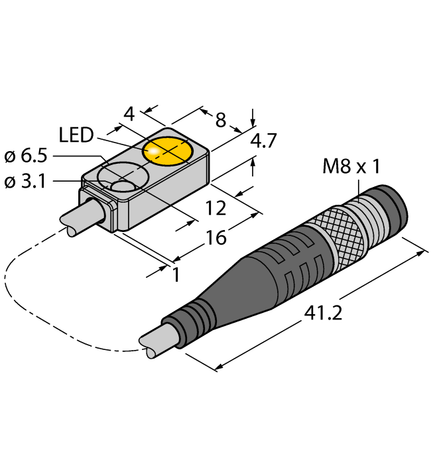

Construction Size 16 x 8 x 4.7 mm, Q4.7
Customs Tariff Number 85365019900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Metal, GD-ZnAl
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 2 mm
Switching Frequency 1.0 kHz

Specifications

SKUCS3788758
MPNBI2-Q4.7-AP6X-0.3-PSG3M
Alternate Part #1614005
UPC/EAN4047101358742
