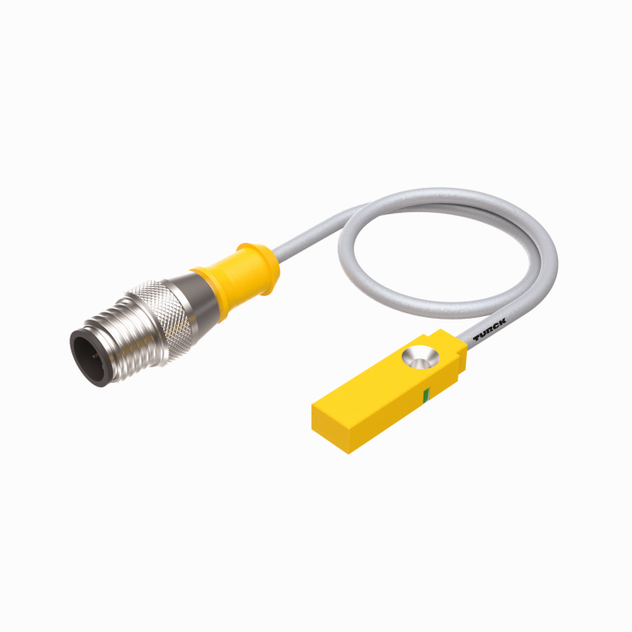

Turck BI2-Q10S-AN6X-0.2-RS4T
SKU: CS3788695MPN: BI2-Q10S-AN6X-0.2-RS4TAlternate Part #: 1619392
1619392 - FERRITE, RECT., DC, PIGTAIL M1
$116.10
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 10.2 mm
- Active face, lateral
- Cable outlet to all sides
- Plastic, PP-GF20
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Pigtail with M12 × 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | 27.8 x 16 x 10.2 mm, Q10S |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PP-GF20 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP67 |
| Rated Switching Distance | 2 mm |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS3788695 |
|---|---|
| MPN | BI2-Q10S-AN6X-0.2-RS4T |
| Alternate Part # | 1619392 |
