Turck BI2-EH6.5K-AP6X-0.2-PSG3M

SKU: CS3788534MPN: BI2-EH6.5K-AP6X-0.2-PSG3MAlternate Part #: 4610096

4610096 - FERRITE, BARREL, DC, PIGTAIL M

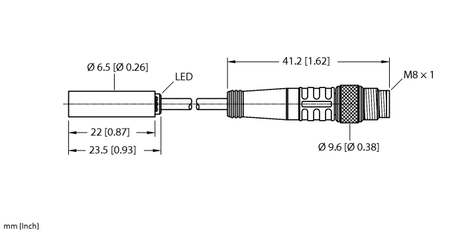

Turck BI2-EH6.5K-AN6X-0.2-PSG3M, BI2-EH6.5K-AP6X-0.2-PSG3M
$168.51
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Increased Switching Distance

  • Smooth barrel, Ø 6.5 mm
  • Stainless steel, 1.4305 (AISI 303)
  • Large sensing range
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M8 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size Ø 6.5 mm
Design Smooth barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 2 mm
Special Feature Sn +
Switching Frequency 3.0 kHz

Specifications

SKUCS3788534
MPNBI2-EH6.5K-AP6X-0.2-PSG3M
Alternate Part #4610096
