Turck BI2-EH6.5K-AP6X

SKU: CS2450698MPN: BI2-EH6.5K-AP6XAlternate Part #: 4610000

4610000 - FERRITE, BARREL, DC, CABLE

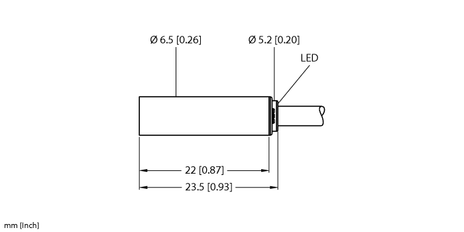

Turck BI1.5-EH6.5K-AN6X, BI1.5-EH6.5K-AP6X, BI2-EH6.5K-AN6X, BI2-EH6.5K-AP6X, BI2-EH6.5K-RP6X
$155.03
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Increased Switching Distance

  • Smooth barrel, Ø 6.5 mm
  • Stainless steel, 1.4305 (AISI 303)
  • Large sensing range
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Cable connection

Attributes

Ambient Temperature -25…+70 °C
Construction Size Ø 6.5 mm
Customs Tariff Number 85365019900.0000
Design Smooth barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 2 mm
Special Feature Sn +
Switching Frequency 3.0 kHz

Specifications

SKUCS2450698
MPNBI2-EH6.5K-AP6X
Alternate Part #4610000
