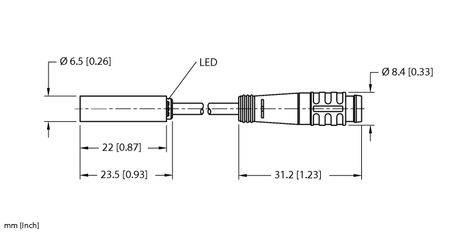

Turck BI2-EH6.5K-AP6X-0.2-PSG3
SKU: CS3788533MPN: BI2-EH6.5K-AP6X-0.2-PSG3Alternate Part #: 4610090
4610090 - FERRITE, BARREL, DC, PIGTAIL M
$168.51
UnitAvailable on backorder
Product Details
Inductive Sensor
With Increased Switching Distance
- Smooth barrel, Ø 6.5 mm
- Stainless steel, 1.4305 (AISI 303)
- Large sensing range
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | Ø 6.5 mm |
| Design | Smooth barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Stainless steel, 1.4305 (AISI 303) |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 2 mm |
| Special Feature | Sn + |
| Switching Frequency | 3.0 kHz |
Specifications
| SKU | CS3788533 |
|---|---|
| MPN | BI2-EH6.5K-AP6X-0.2-PSG3 |
| Alternate Part # | 4610090 |
