All ProductsTurck

Turck BI1-EH04-AP6X-0.2-PSG3

SKU: CS3787667MPN: BI1-EH04-AP6X-0.2-PSG3Alternate Part #: 4609595

4609595 - FERRITE, BARREL, DC, PIGTAIL M

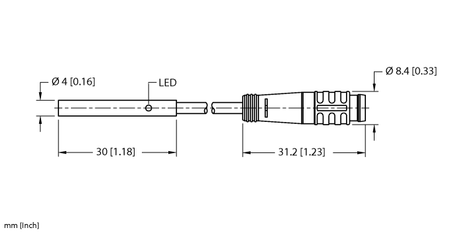

Turck BI1-EH04-AN6X-0.2-PSG3, BI1-EH04-AP6X-0.2-PSG3
$187.89
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Smooth barrel, Ø 4 mm
  • Stainless steel 1.4305 (AISI 303)
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M8 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size Ø 4 mm
Design Smooth barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 1 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787667
MPNBI1-EH04-AP6X-0.2-PSG3
Alternate Part #4609595
