All ProductsTurck

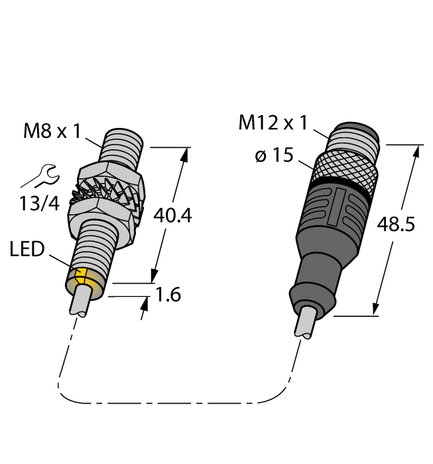

Turck BI1.5-EG08-RD6X-0.2-RS4.2T

SKU: CS3787779MPN: BI1.5-EG08-RD6X-0.2-RS4.2TAlternate Part #: 16043431

16043431 - FERRITE, BARREL, DC, PIGTAIL

Turck BI1.5-EG08-RD6X-0.2-RS4.2T, BI1.5U-EG08-AN6X-0.2-RS4T, BI1.5U-EG08-AP6X-0.2-RS4T, BI2-EG08-AG41X-0.2-RS4.23T, BI2-EG08-AG41X-0.2-RS4.23T/S1589, BI2-EG08-AG41X-0.3-RS4.23T/S1589, BI2-EGT08-AG41X-0.2-RS4.23T/S1589, BI2U-EG08-AN6X-0.2-RS4T, BI2U-EG08-AN6X-0.8-RS4T, BI2U-EG08-AP6X-0.2-RS4T, BI2U-EGT08-AN6X-0.5-RS4T/S1589
$151.79
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M8 x 1
  • Stainless steel, 1.4427 SO
  • DC 2-wire, 10…30 VDC
  • NC contact

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Stainless steel, 1.4427 SO
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NC contact, 2-wire
Protection Class IP67
Rated Switching Distance 1.5 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787779
MPNBI1.5-EG08-RD6X-0.2-RS4.2T
Alternate Part #16043431
