All ProductsTurck

Turck BI1.5-EG08-AN6X-0.2-PSG3

SKU: CS3787757MPN: BI1.5-EG08-AN6X-0.2-PSG3Alternate Part #: 4602399

4602399 - FERRITE, BARREL, DC, PIGTAIL M

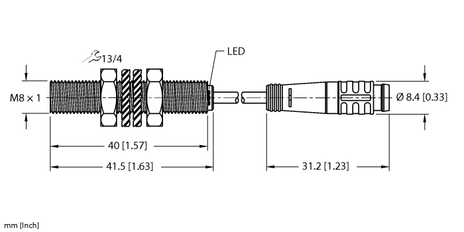

Turck BI1.5-EG08-AN6X-0.2-PSG3, BI1.5-EG08-AP6X-0.2-PSG3, BI2-EG08-AN6X-0.2-PSG3, BI2-EG08-AP6X-0.2-PSG3
$151.79
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M8 × 1
  • Stainless steel, 1.4305 (AISI 303)
  • DC 3-wire, 10…30 VDC
  • NO contact, NPN output
  • Pigtail with microfast snap-lock connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, Ø 8 mm
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP67
Rated Switching Distance 1.5 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787757
MPNBI1.5-EG08-AN6X-0.2-PSG3
Alternate Part #4602399
