Turck NI3-EG08-AN6X-0.2-PSG3M
SKU: CS3814117MPN: NI3-EG08-AN6X-0.2-PSG3MAlternate Part #: 4602899
4602899 - FERRITE, BARREL, DC, PIGTAIL M
$147.63
UnitAvailable on backorder
Product Details

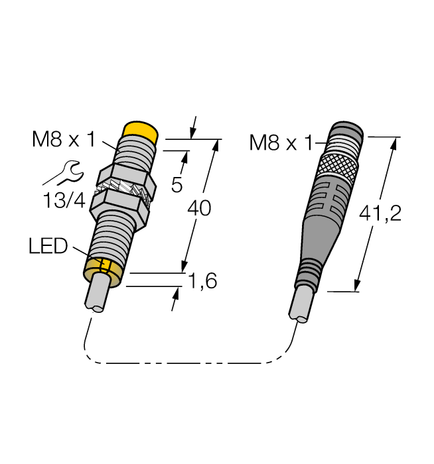

Inductive Sensor
- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Pigtail with male end M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M8 x 1 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, Ø 8 mm |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP67 |
| Rated Switching Distance | 3 mm |
| Switching Frequency | 3.0 kHz |
Specifications
| SKU | CS3814117 |
|---|---|
| MPN | NI3-EG08-AN6X-0.2-PSG3M |
| Alternate Part # | 4602899 |
